Description
Using AC sampling technology, PZ Series electric energy meters can measure many three-phase grid electrical parameters such as current, voltage, power, electric energy, etc. directly or indirectly. It can be used for local display and connected with the control equipment to form a measuring and controlling system.
Fitted with the RS-485 communication port, adopting compatible Modbus-RTU protocol, meters can switch electric parameter signal into standard analog output, with four-channel (two-channel) switching input / two-channel switching output. Based on different requirements, electric parameters for transformation ratio, alarm, communication, etc., can be set up and controlled by keys on the faceplate.
PZ series meters have a high price-performance ratio and can replace traditional electric transducers and measuring meters. As an advanced intelligent, digital front-end acquisition component, these electric meters have been widely used in various control systems, SCADA systems,s and energy source management systems.
Features
1. The counter of the Three Phase Energy Meter has good sealing and anti-interference effects so that it can ensure accurate measurement.
2. Higher accuracy for voltage: Class 0.2, active energy: Class 0.5. Voltage can be connected to 660V.
3. The 92*92/ 88*88 design makes installation more convenient and saves time.
4. The clear LCD/LED screen allows you to see the data more clearly and prevents errors.

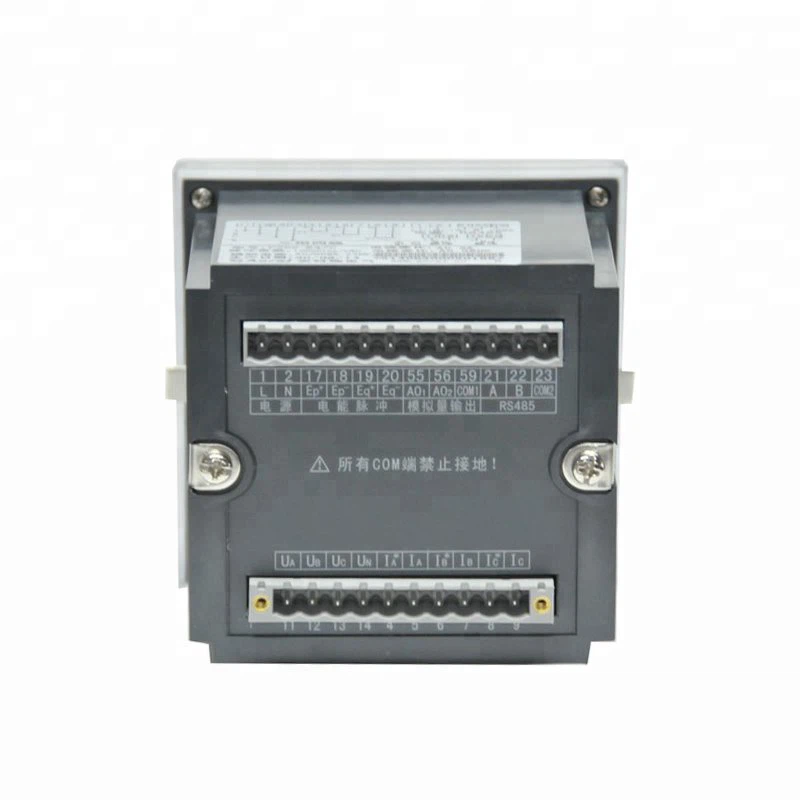

Appearance
 |
 |
 |
Parameter
|
Project |
Parameter |
||
|
Specification |
3 phase 3 wires, 3 phase 4 wires |
||
|
Input |
Connect |
45-65HZ |
|
| Frequency |
3 phase 3 wire, 3 phase 4 wire |
||
| Voltage |
overload: 1.2 fold rating(continuous); 10 fold rating for 1 second |
||
|
power consumption： < 0.2VA |
|||
|
Current |
overload: 1.2 fold rating(continuous); 10 fold rating for 1 second |
||
|
power consumption： < 0.2VA |
|||
| Output |
Electric energy |
Output mode: 2-channel open-collector photo coupler pulse |
|
| Pulse constant: 10000, 40000, 160000 imp/kWh | |||
|
Communication |
RS485port, Modbus -RTU protocol |
||
| Display | LED or LCD display, set multiplying power, alarm, switching indication at will; For 1 channel analog, display related programmable setting | ||
| Function |
Switching input |
2channel or 4channel passive dry contact input mode |
|
|
Switching output |
1 active photocoupler output |
||
|
Output mode： 2 channel relay NO contact output |
|||
| Analog Output | Output mode: 1, 2, or 4 channel Output, 0 - 20mA，4 - 20mA programmable | ||
| load capacity≤500Ω | |||
|
Accuracy class |
Frequency 0.05Hz, reactive electric energy 1 class, others 0.5class |
||
| Power supply |
DC100~350V; AV 85~265V; （In order to instrument wiring shall prevail ） |
power consumption<5VA |
|
|
Security |
Equipment withstand voltage= power supply, voltage input circuit 2kVAC； power supply,current circuit 2.5kV/1min(RMS) Insulation resistance- input, output end to housing >100MΩ |
||
|
Range of |
Modbus RTU:1~ 247； |
||
|
Environment |
Temperature | Work: -10°C~+55°C storage: -25°C ~+75°C | |
| Humidity | ≤93%RH Non-condensing | ||
| Altitude |
≤2500m |
||
Function
| Meter type | Basic Function | Shape | Optional function |
|
PZ96-E3/* PZ96-E4/* |
EPI/EPE, EQL/EQC measurement；
Active power, Reactive Power, Power Factor measurement;
Three-phase current, Voltage, Frequency measurement |
96 Square |
|
|
PZ96L-E3/* PZ96L-E4/* |
Wiring
 |
 |
|

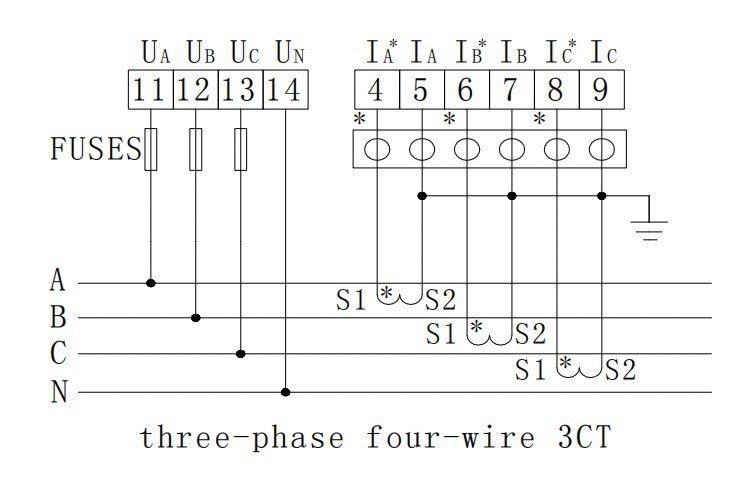

Fig1 Three-Phase Four Wire 3CT |
|
 |
 |
| Fig2 Three-Phase Four Wire 3PT, 3CT | |
 |
 |

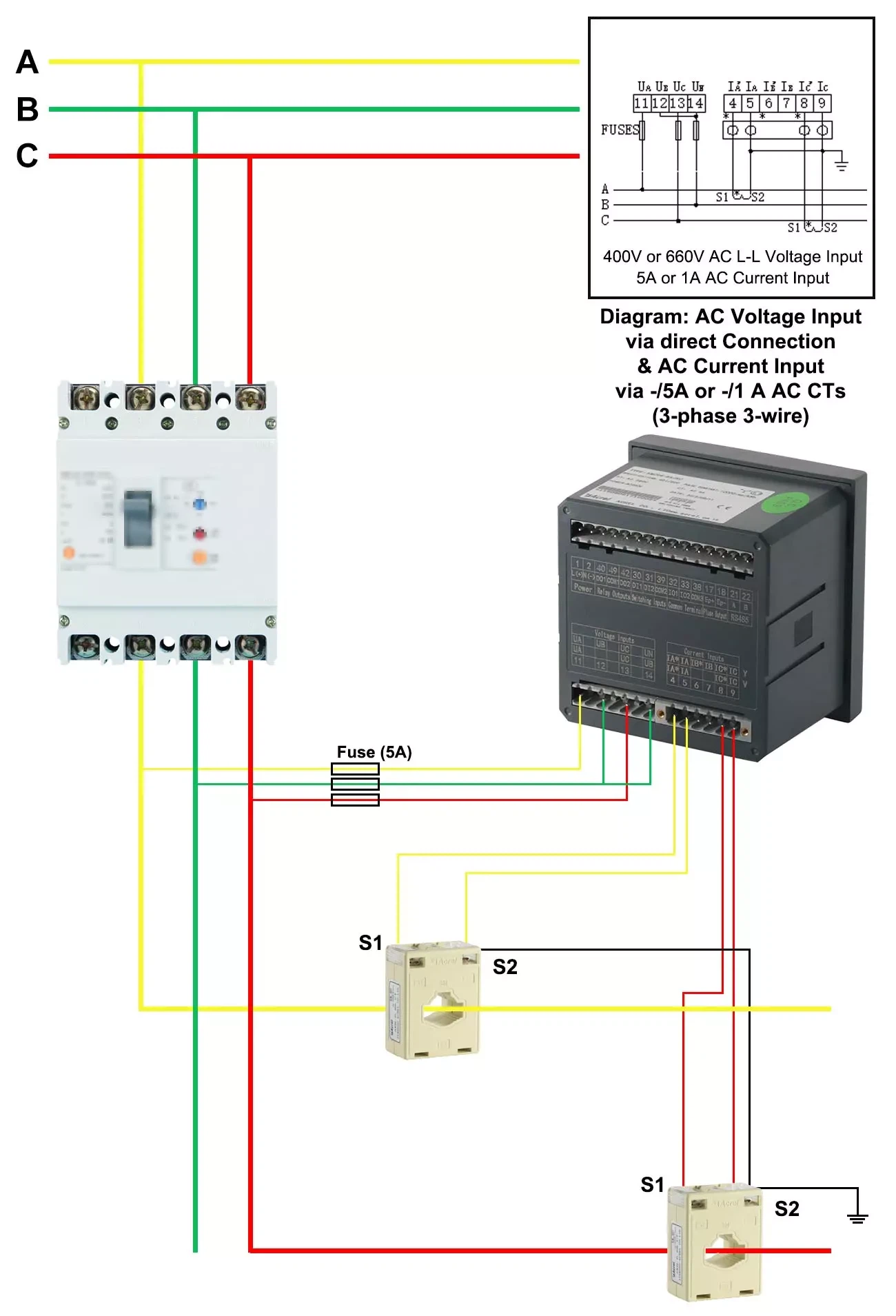

| Fig3 Three-Phase Three Wire 2CT | |
 |
 |
| Fig3 Three-Phase Three Wire 2CT 2PT | |
Installation
|
|

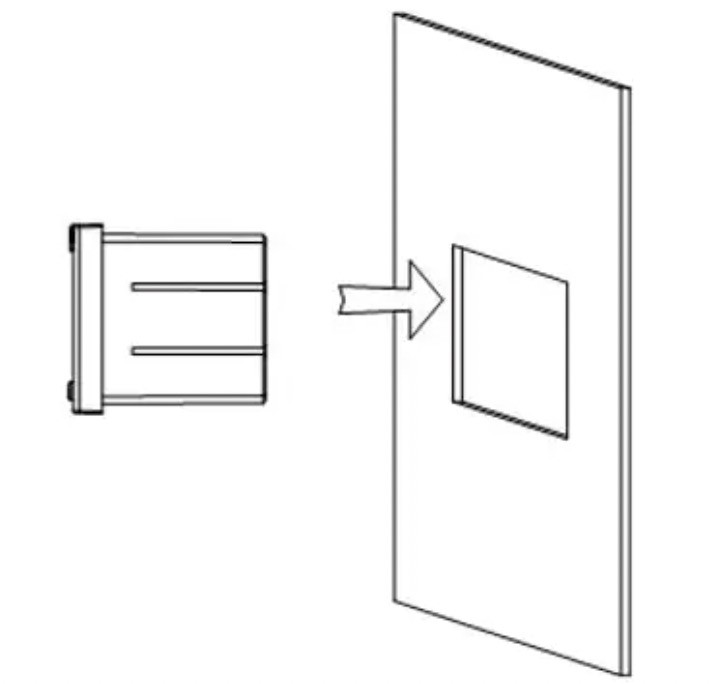

1. Cut out a hole on the object where we will install the meter according to the dimensions of the meter referred to above.
2. Remove the buckle on the meter. |
|
|
3. Install the meter into the cut-out hole.
4. Buckle up and fixed the meter. |
