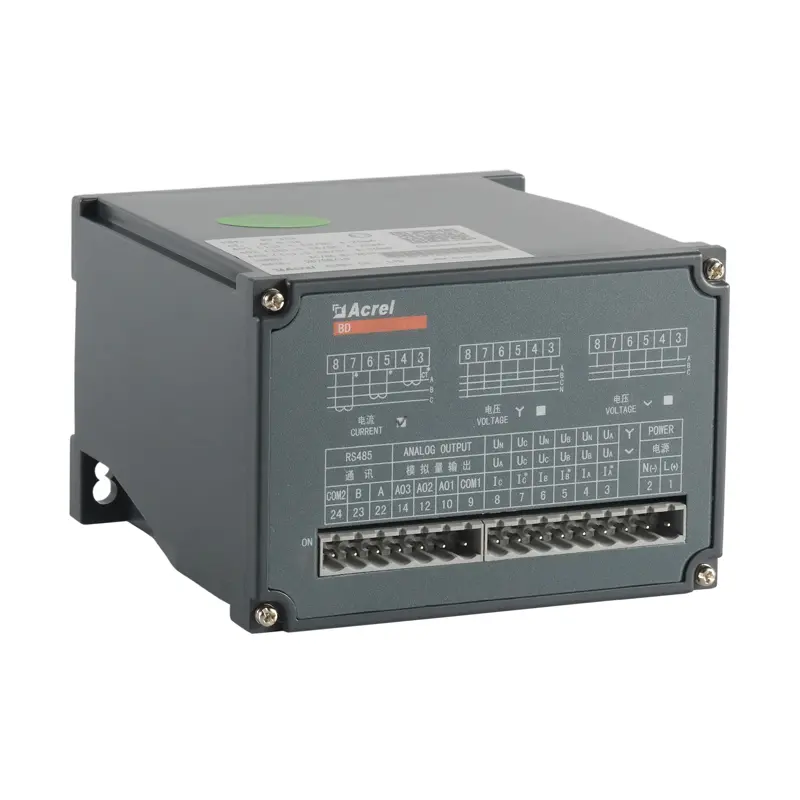

Three Phase Current Transducer





Our Three Phase Current Transducers are used to monitor the current flowing through electrical conductors, they generate the information required to maintain a smooth operating condition and metering applications to provide a DC current or voltage output proportional to the AC input current. They can be operated in a two-wire loop power configuration with a large overload capability. They can also operate over a temperature range of -40°C to +85°C and detect data with great accuracy.





Our Three Phase Current Transducers are made with nanocrystalline and Permalloy internal components with good temperature characteristics and phase angle performance to provide a high quality current transfer experience. Due to the excellent materials, they can withstand applications with shock, ESD, EMI, transient burst and surge requirements during operation without being easily damaged or degraded by the effects. In addition, they use nanocrystal power modules for efficient and stable operation, and their lightning-proof design and fail-safe features ensure safety.





		BD-AI BD-AV	BD-F	BD-PF	BD-3I3 BD-3(4)V3	BD-3(4)P BD-3(4)Q	BD-3(4)E
Phase&Wiring	1P2W	√	○	○	○	○	○
	3P3W	—	—	○	○	○	○
	3P4W	—	—	○	○	○	○
Input	Voltage	Direct L-L	Up to 480V AC
		Direct L-N	Up to 276V AC
		With external PT	○	○	○	○	○
	Current	Direct	Up to 5A AC
		With external CT	○	○	○	○	○
Output	Normal Value	DC:4-20mA、0-20mA, 0-5V, 0-10V, so on
	Load Resistance	Current output≤600Ω Voltage output≥1000Ω
	Ripple Content	<0.5% Peak Value
Measuring	Voltage	□	—	—	□
	Current		—	—	□	□	□
	Active/Reactive Power	—	—	—	—	□	□
	Apparent Power	—	—		—	□	□
	Power Factor	—	—	R	—	□
	Frequency					□	□
Energy Metering	±KWh	—	—	—	—	—	○
Accuracy Class	0.5%
Communication	Interface: RS485 Protocol: Modbus-RTU			—
Analog Output	DC 0-5V,0-10V,0-20mA,4-20mA
Pulse Output
Dimensions(mm)	Housing(WxHxD)	138X76X24	119X75X55	119X75X55	112X110X75	112X110X75	112X10X75
Auxiliary Power		85-265V AC/DC,DC24V,DC48V
Temperature	Operation	-10 to 55℃
	Storage	-25 to 70℃
Humidity		Up to 95%,no condensing
Installation		(Rail)DIN35 fix on cubicle with screws
Standards		GB/T 13850

‘○‘: Yes ‘—’ No ‘’ Optional

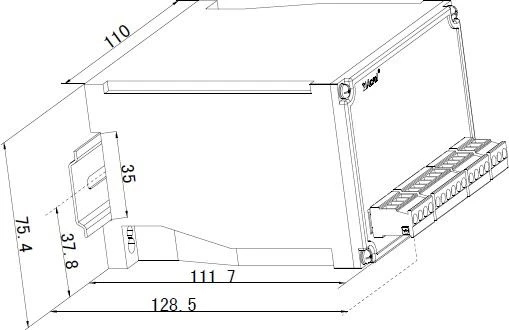

(L*W*H: 128*110*75.4)
