Description
ADL10-E single-phase electric energy meter is a new generation energy meter designed by Acrel Co,.Ltd with many years' experience in designing electricity meters. Measurement, statistic, communication and LCD display functions are installed in the power meter. This power meter has advantages of high stability, low power consumption and data saving after blackout etc.
All meters meet the related technical requirements of electronic power meters in the IEC62053-21、IEC62053-22 standards.

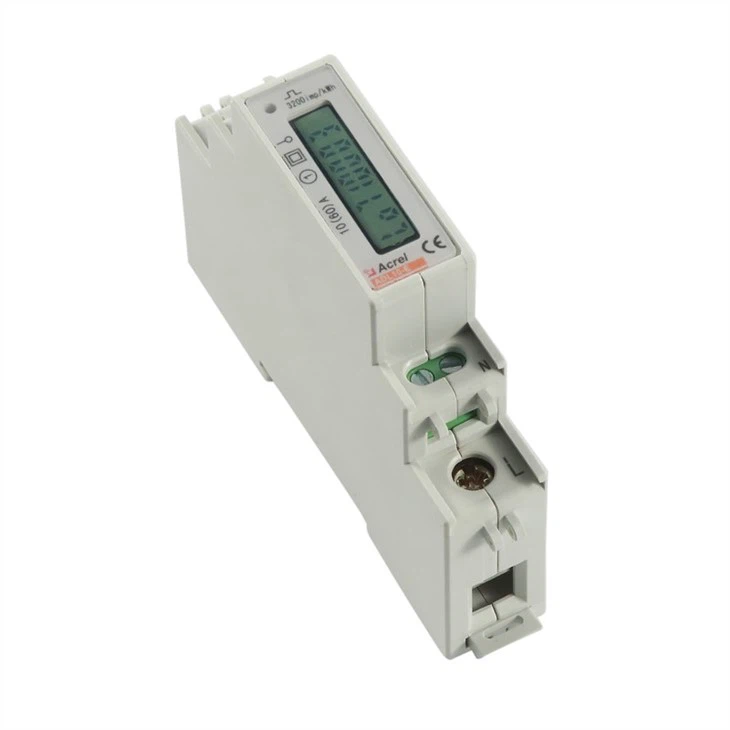

Appearance
 |
 |
 |
Parameter
|
Input voltage |
Reference voltage |
AC220V |
|
Reference frequency |
50Hz |
|
|
Power consumption |
<10VA |
|
|
Input current |
Basic current |
10A |
|
Maximum current |
60A |
|
|
Starting current |
0.004Ib |
|
|
Consumption |
<4VA (Maximum current) |
|
|
Measurement performance |
Accuracy of measuring |
1 Class |
|
Range of measuring |
000000.00~999999.99kWh |
|
|
Communication |
Interface |
RS485(A+、B-) |
|
Connection mode |
Shielded twisted pair conductors |
|
|
Protocol |
MODBUS-RTU |
Function
|
Function |
Function description |
Function provide |
|
Measurement of kWh |
Single-phase active kWh (positive and negative) |
■ |
|
Measurement of electrical parameters |
Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency |
■ |
|
LCD Display |
8 bits section LCD display |
■ |
|
Communication |
Communication interface: RS485, Communication protocol: MODBUS-RTU |
