Overview

Our 0-5V current transducers are widely used as instrument transformers to convert AC or direct electrical signals into proportional industry standard electrical signals and are widely used in power grids (e.g. generators or substations) for current detection. Their function is to scale the measured current down to a lower level for measurement and to provide vital isolation from high voltage power lines. Also they are usually passive devices, used in conjunction with a shunt, to sense the secondary current in the output signal.

Features

Our 0-5V current transducers have good working accuracy. They can use the principle of electromagnetic induction to accurately measure the AC current in the power grid in real time, and use constant current and linear compensation technology to isolate and convert it into a standard DC signal output. Their stainless steel terminal blocks can realize fast wiring, carry 1000A current at the same time, achieve a monitoring accuracy of 0.1% during operation, and have a high response speed. And they have strong stability, with anti-instantaneous surge function, can effectively resist the interference of current changes.

Function

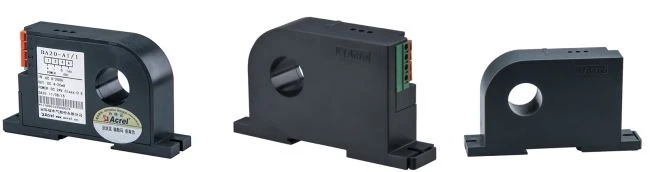

		BA05-AI/I(V)	BA10-AI/I(V)	BA20-AI/I(V)	BA50-AI/I(V)	BA50L-AI/I(V)
Auxiliary power	DC 12V	DC 12V DC 24V	DC 12V DC 24V	DC 12V DC 24V	DC 12V DC 24V	DC 12V DC 24V
	DC 24V
Consumption		≤1W	≤1W	≤1W	≤1W	≤1W
Through-hole size		φ5mm	φ10mm	φ20mm	φ50mm	φ50mm
Input	Current	AC 0~(0.5~10)A	AC 0~(8~50)A	AC 0~(40~200)A	AC 0~(60~600)A	AC 0~(0.1~1)A (limitation of leakage currents)
Output	Nominal value	DC4-20mA,or 0-20mA,0-5V,0-10V etc
	Load resistance	Current output≤500Ω，Voltage output≥1kΩ
Accuracy Class		0.5%
Response time		≤350ms
Temperature		Operation:-10 to +55℃ Storage:-25 to +70℃
Temperature coefficient		≤200ppm/℃
Installation		(Rail)DIN35,fix on cubicle with screws
Standards		GB/T 13850
