Name: Three Phase Panel Meter - China Three Phase Panel Meter Manufacturers Suppliers Factory - Acrel
Brand: Acrel
SKU: 144656473

Description

Commonly found in larger homes and businesses, our Three Phase Panel Meter is a three-phase power meter with a data logger function for real-time and long-term three-phase power measurement of currents. It integrates the measurement of power parameters as well as power monitoring and evaluation management in one unit. When it is installed in your home, the power consumed in your home remains the same and it can be used with smaller and cheaper wiring systems for stable monitoring in environments with lower voltages. It is therefore widely used in power systems, industrial and mining enterprises, intelligent buildings and other areas with power monitoring needs.

Features

Although the initial design and installation costs of our Three Phase Panel Meters are slightly higher than those of a typical electricity meter, they are much cheaper to maintain than single-phase systems and can monitor the current more sensitively without adding additional costs to the electricity bill. They also have a wide range of peripheral interface functions, allowing you to choose your own according to your needs. They are also designed with switching inputs and relay outputs for easy remote control of circuit breakers, making them very easy to use.

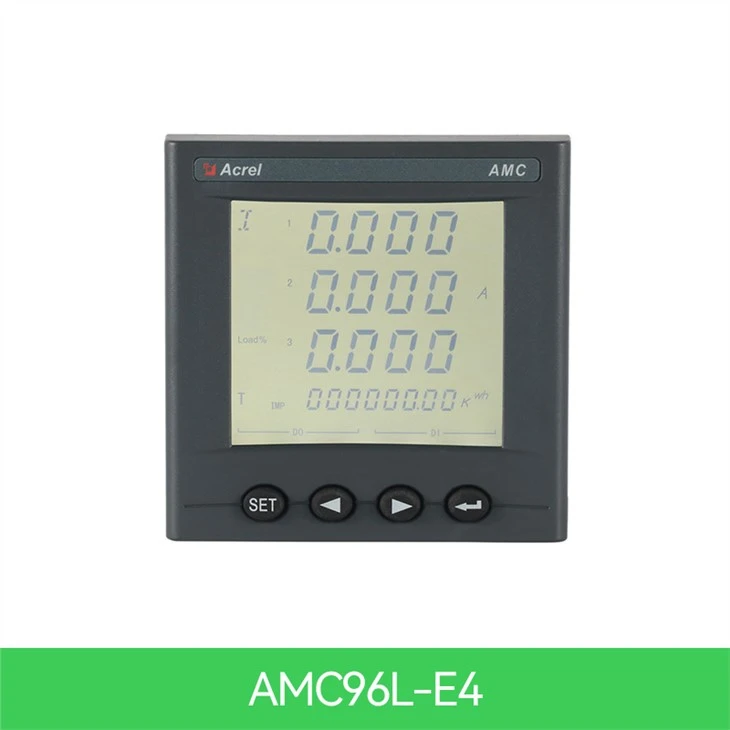

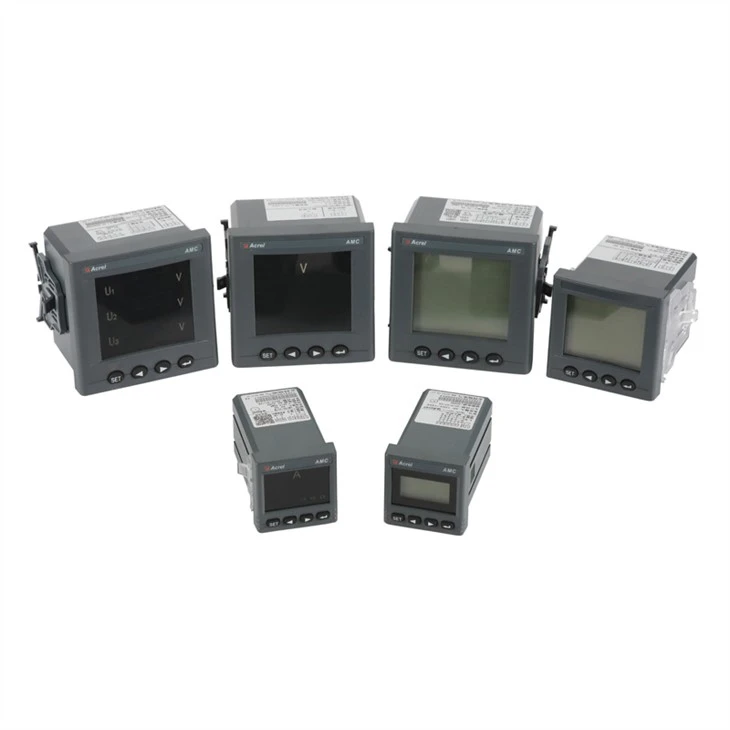

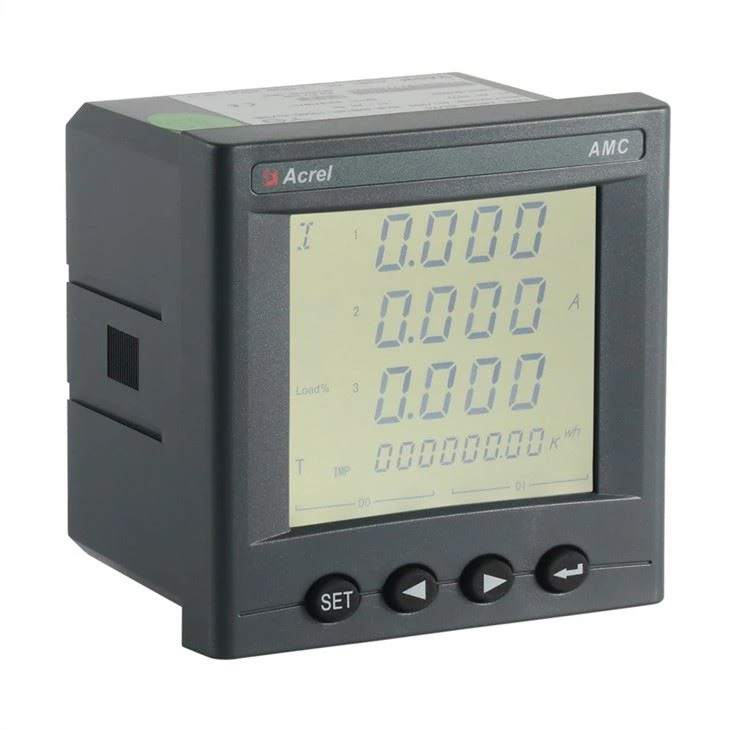

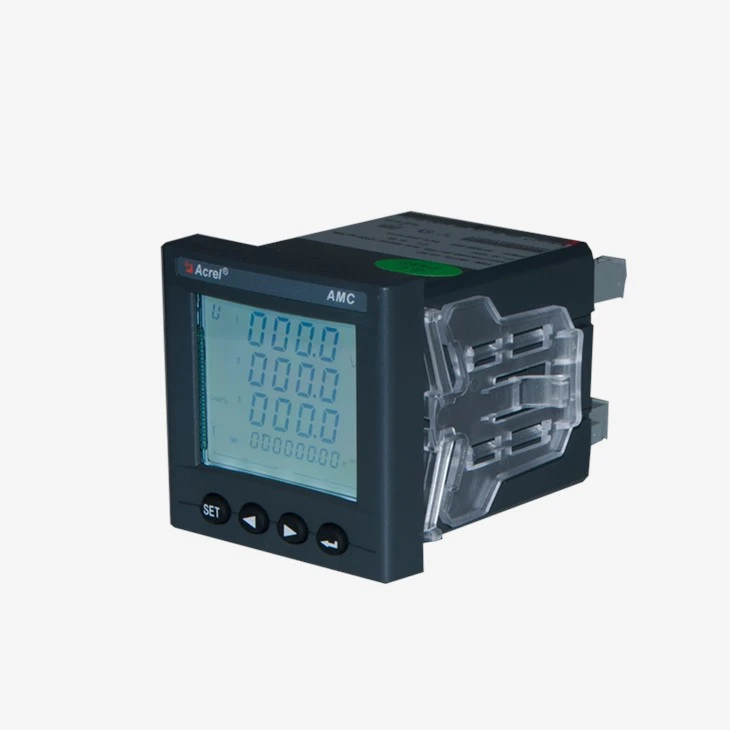

Appearance

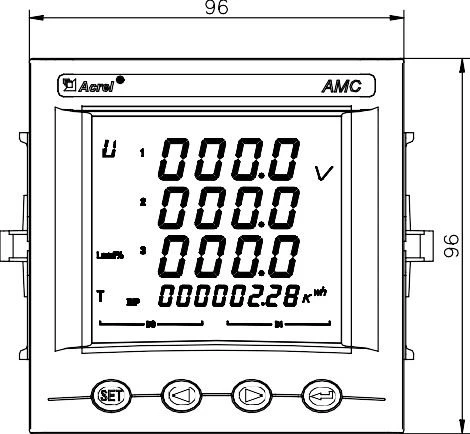

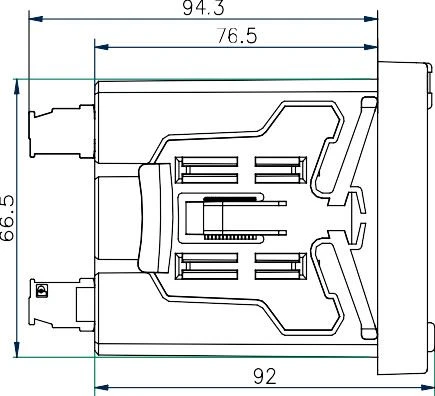

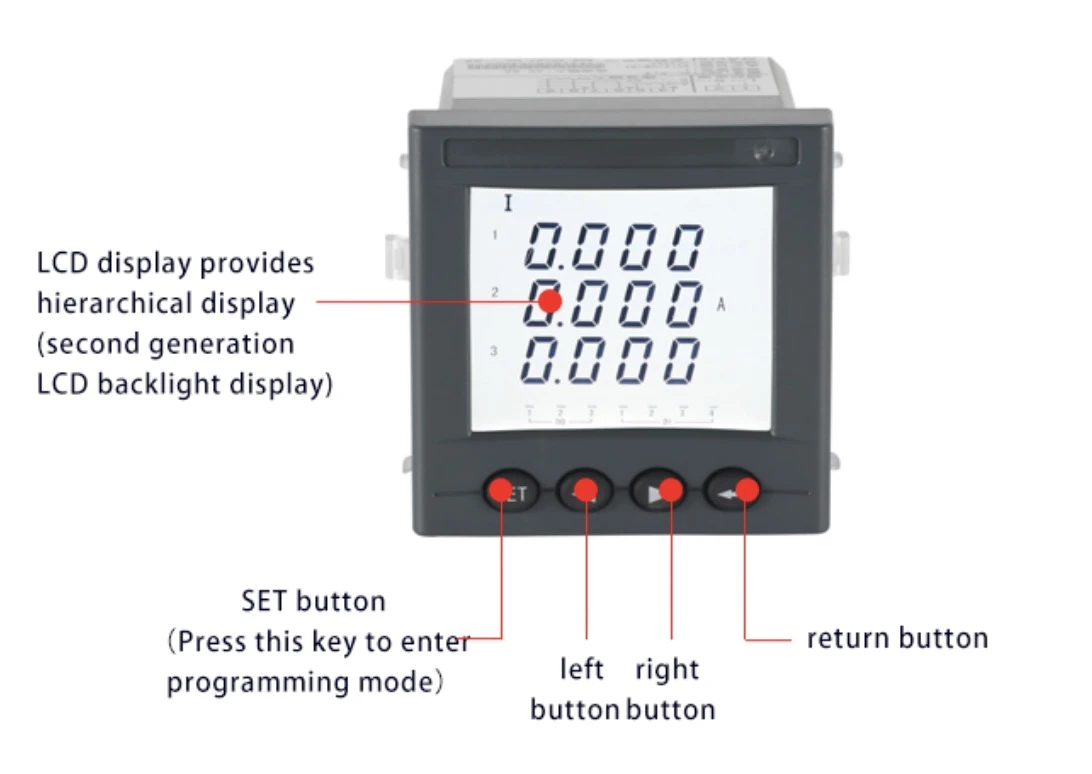

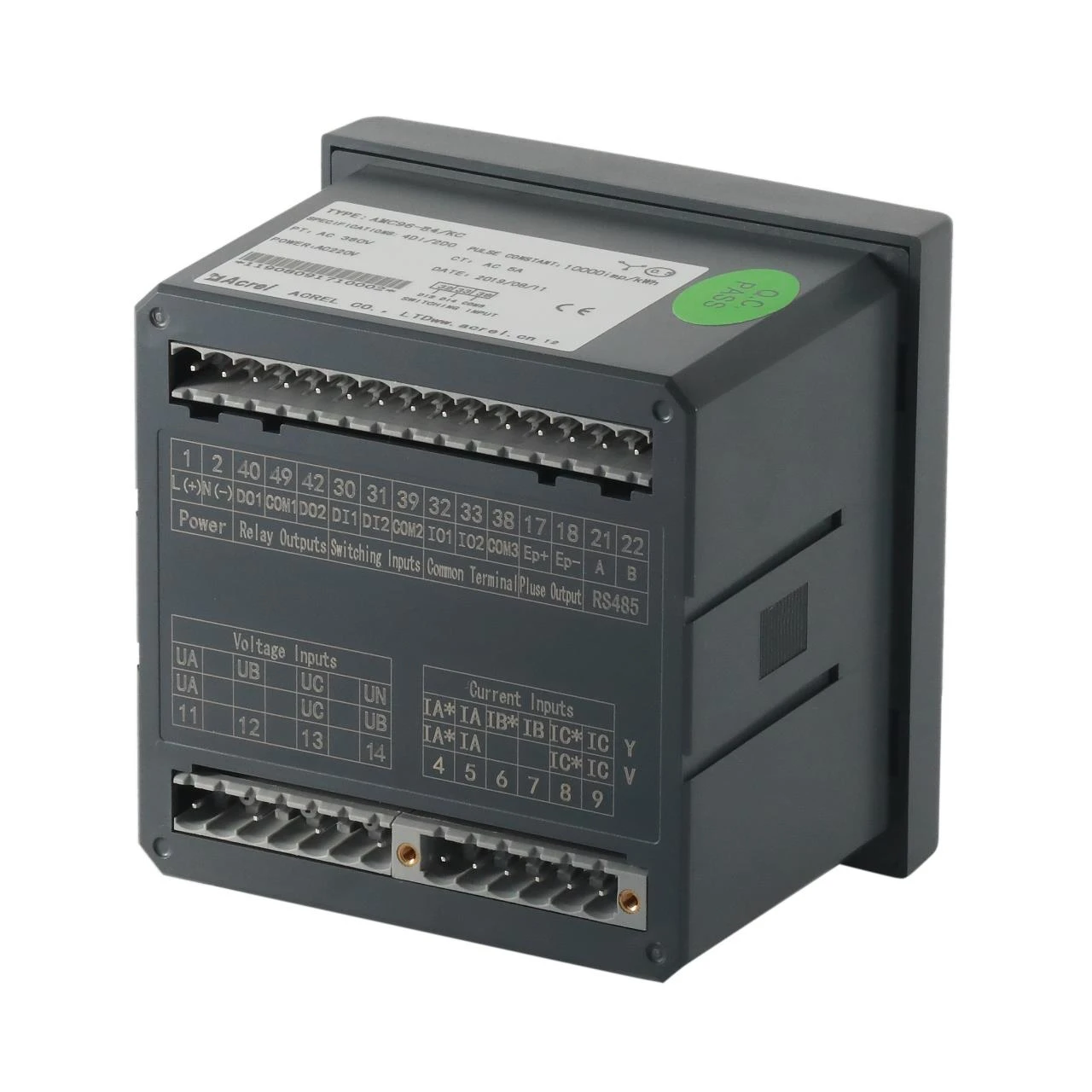

Three Phase Panel Meter Functions

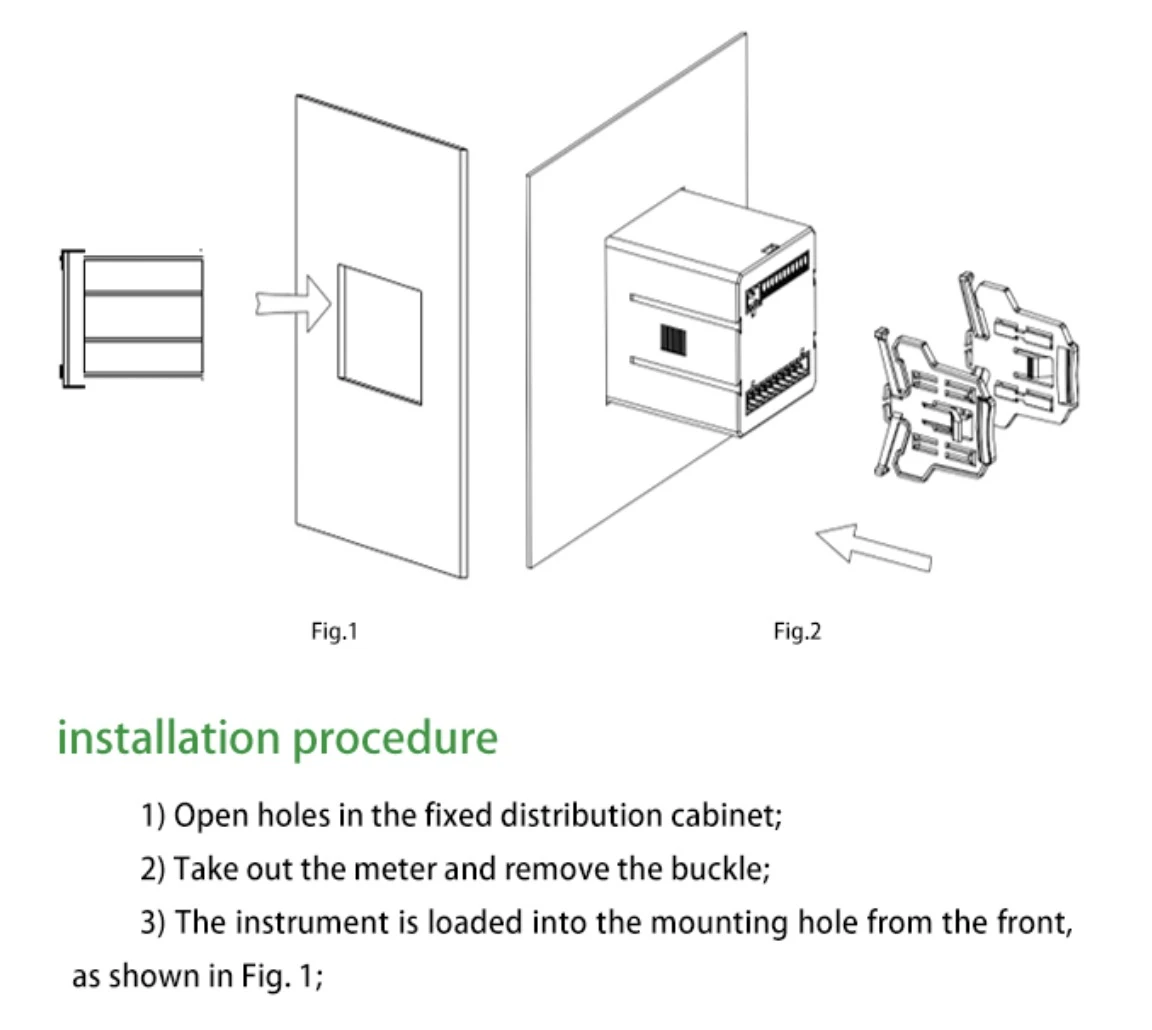

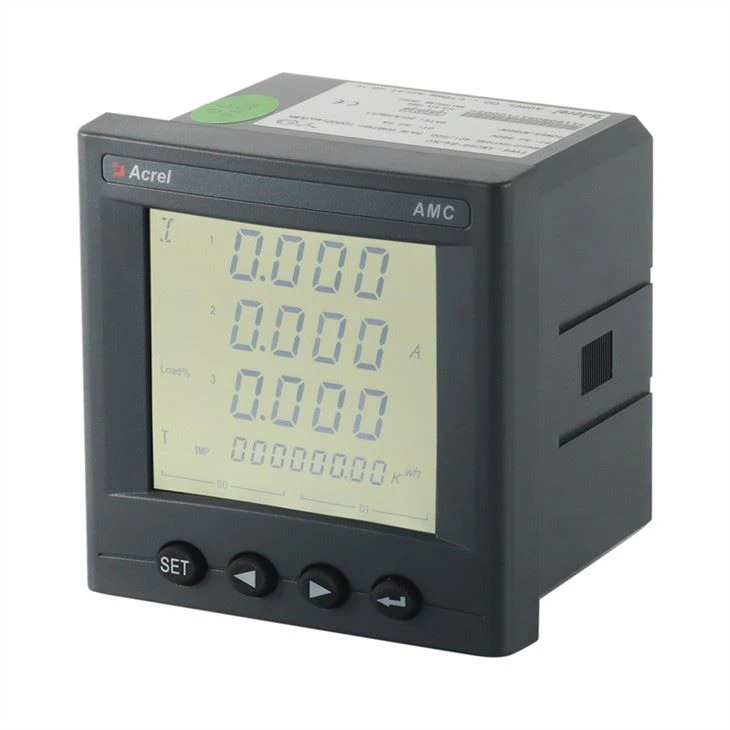

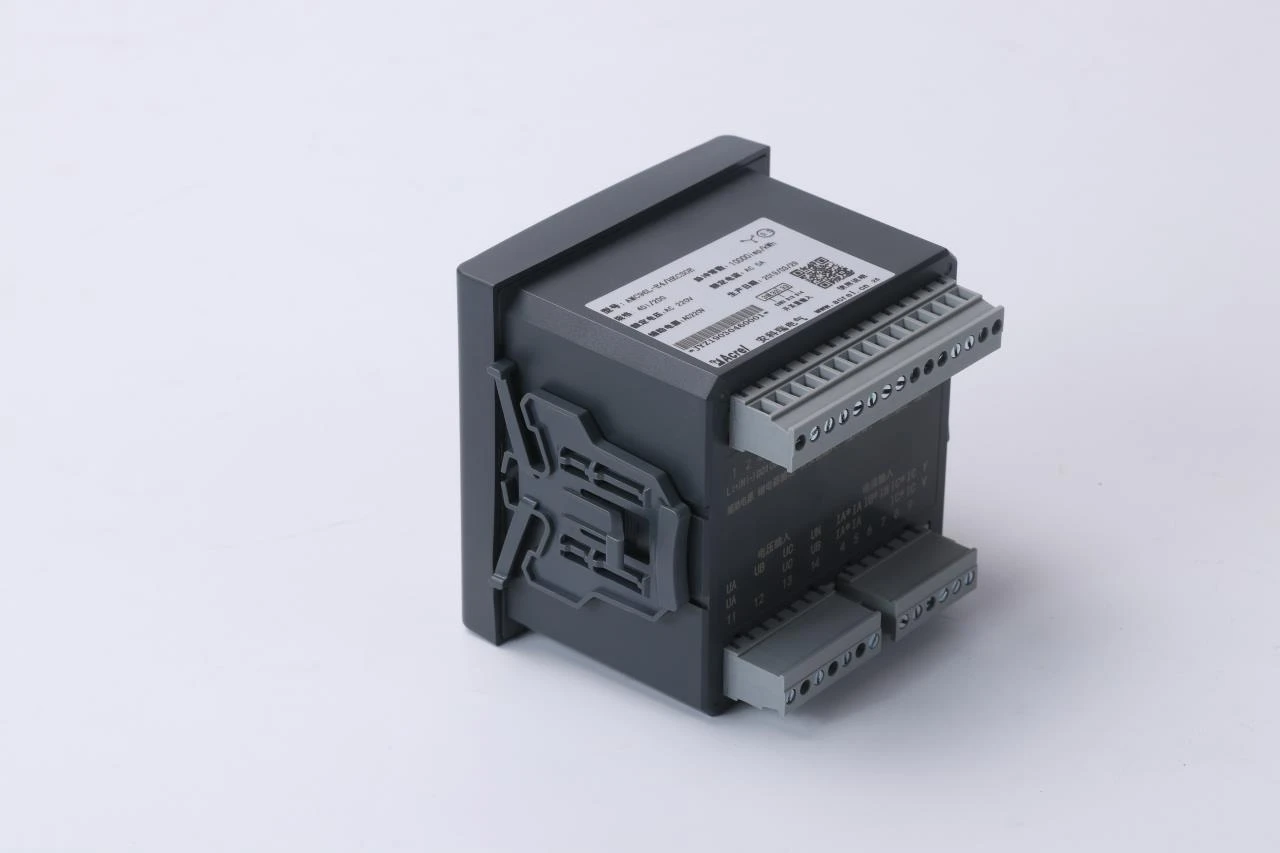

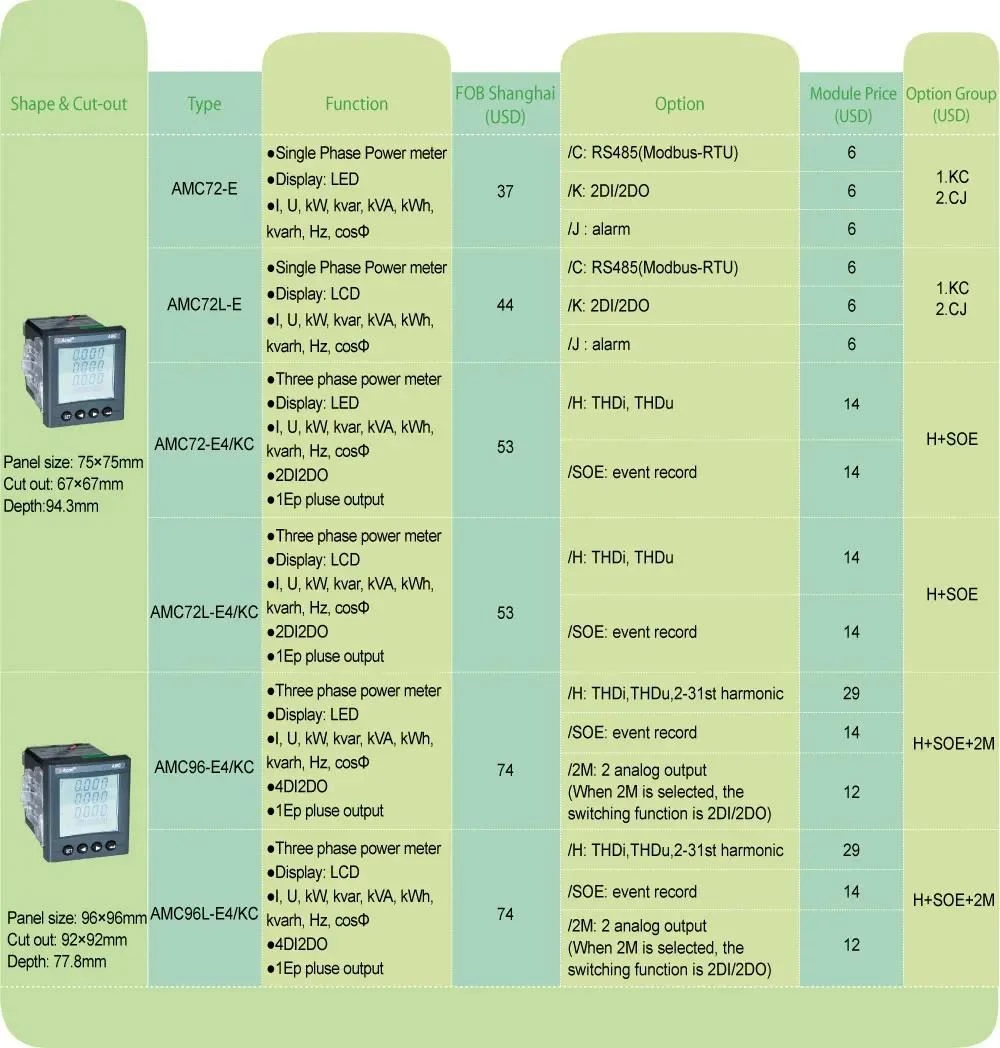

Acrel AMC96L

Parameter

Technical parameters			Value
Input	Connection		3-phase-3-wire, 3-phase-4-wire
	Frequency		45-65Hz
	Voltage		Rating: Three-phase: AC 3×57.7V/100V(100V)、3×220V/380V(400V)、 3×380V/660V(660V)(96 size only) Note：72 profile not suitable for high voltage applications
			Overload:1.2 fold rating {continuous) : 2 fold rating for 1 second
			Power consumption:< 0.5VA
	Current		Rating: AC IA、5A
			Overload:1.2 fold rating(continuous);10 fold rating for 1 second
			Power consumption:< 0.5VA
Output	Electric energy		Output mode:open-collector photo-coupler pulse
			Pulse constant: 10000imp/kWh(settable)，see wiring diagram for details；
	Communication		RS485port, Modbus -RTU protocol,DLT645 protocol(versions 07 and 97)， baud rate 1200 ~ 38400
Function	Switching input		Dry contact input, built-in power supply;
	Switching output		Output mode: Relay normally open contact output
			Contact capacity: AC 250V/3A、 DC 30V/3A
	Analog output		1-5V,4 - 20mA
Accuracy class			Frequency:0.05Hz,Current、Voltage:0.2 class,Reactive power:l .0class,Reactive Electric energy:l .0class, active power:0.5class,active electric energy: 0.5class,2-31th harmonic measurement:±1%
Power supply			AC 85-265V DC 100V-350V	power consumption≤10VA
Security	Power frequency withstand voltage		Between Power supply//Switching Output// Current Input//voltage Input and Transmitting// Communication //Pulse Output//switching input AC 2 kV 1min; Between Power supply、switching output、Current Input、voltage Input AC 2 kV 1min; Between Transmitting、Communication、Pulse Output、switching input AC 1kV 1 min;
	Insulation resistance		Input、Output end to machine enclosure >100MΩ
Environment		Temperature	work: -25°C~+65°C storage: -40°C ~+80°C
		Humidity	≤93%RH Non-condensing
		Altitude	≤2500m

Function Description

Function	Function description	Function provides
Measurement of kWh	Active kWh (positive and negative)	■
	Reactive kWh (positive and negative)	■
	A. B, C split-phase positive active energy	■
Measurement of electrical parameters	U、I	■
Measurement of electrical parameters	P、Q、S、PF、F	■
Measurement of harmonics	2~31ST Voltage and current harmonic	■
LCD Display	12 bits section LCD display, background light	■
Key programming	4 keys to communication and set parameters	■
Pulse output	Active pulse output	■
Analog Analog Output	2DI2DO	■
Communication	Communication interface: RS485, Communication protocol: MODBUS-RTU	■
SOE	Event Record	■
