Single Phase Current Transducer

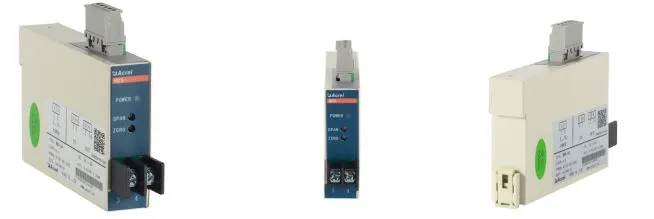

Our Single Phase Current Transducers are devices that isolate and transmit electrical parameters such as current, voltage frequency, power, power factor or temperature and resistance as linear DC analogue or digital signals. They use galvanic isolation technology, which effectively allows each board to work independently so that the input and output functions of the current do not interfere with each other, achieve isolation withstand voltage values of 2500 Vdc or more and have good operating stability.

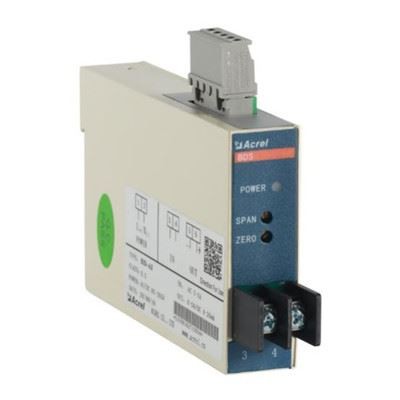

Our Single Phase Current Transducers adopt thickened design, and high-quality materials make them more durable. Their power chips have the function of automatic step-down, which is easy to dissipate heat, so they can effectively avoid security risks. Moreover, they are loaded with imported chips and ASIC integrated circuits at the same time, which can make the current conversion reach the accuracy of 0.5, and can quickly generate a response within 0.25S s. In addition, their shells are made of high-quality ABS flame-retardant materials, and their joints are standard wiring terminals, which can not only play a role of efficient protection in the use process, but also effectively improve the conductive efficiency.









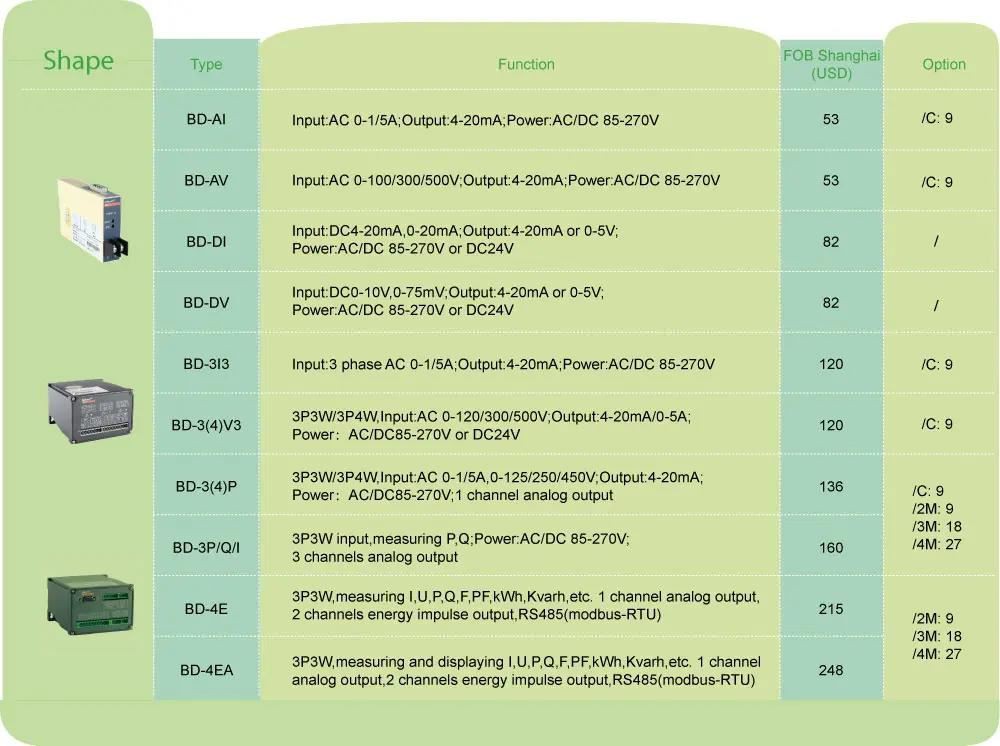

			BD-AI BD-AV	BD-F	BD-PF	BD-3I3 BD-3(4)V3	BD-3(4)P BD-3(4)Q	BD-3(4)E
Phase&Wiring		1P2W	√	√	√	√	√	√
		3P3W	—	—	√	√	√	√
		3P4W	—	—	√	√	√	√
Input	Voltage	Voltage	Up to 480V AC
		Direct L-N	Up to 276V AC
		With external PT	√	√	√	√	√	√
	Current	Direct	Up to 5A AC
		With external CT	√	√	√	√	√	√
Output		Normal Value	DC:4-20mA、0-20mA, 0-5V, 0-10V, so on
		Load Resistance	Current output≤600Ω Voltage output≥1000Ω
		Ripple Content	<0.5% Peak Value
Measuring		Voltage	□	—	—	□
		Current	□	—	—	□	□	□
		Active/Reactive Power	—	—	—	—	□	□
		Apparent Power	—	—	—	—	□	□
		Power Factor	—	—	√	—	□	□
		Frequency		√			□	□
Energy Metering		±KWh	—	—	—	—	—	√
Accuracy Class		0.5%
Communication		Interface:RS485 Protocol:Modbus-RTU	□	□	—	□	□	□
Analog Output		DC 0-5V,0-10V,0-20mA,4-20mA
Pulse Output
Dimensions(mm)		Housing(WXHXD)	138X76X24	119X75X55	119X75X55	112X110X75	112X110X75	112X10X75
Auxiliary Power			85-265V AC/DC,DC24V,DC48V
Temperature		Operation	-10 to 55℃
		Storage	-25 to 70℃
Humidity			Up to 95%,no condensing
Installation			(Rail)DIN35 fix on cubicle with screws
Standards			GB/T 13850

‘√‘: Yes ‘—’ No ‘□’ Optional

	BD-3P Series Electricity Transducer ●VoltageCurrentPowerPower factorFrequency ●Overload: 1.2 times of the rated value ●Analog Output DC 0-5V/0-10V/0-20mA/4-20mA
BD-3I3 Series three-phase current Transducer ●Application: Industrial automation ●Input: AC current measurement up to 200A ●Overload: 1.2 times of the rated value ●● Output: DC 0-5V









(L*W*H: 138*24/76)





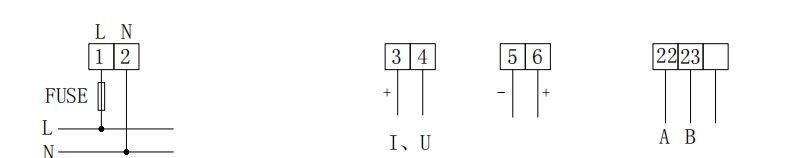

AC 85～265V DC 100～350V Auxiliary power supply Input-Output RS485 Communication
