Application Scenario
Description

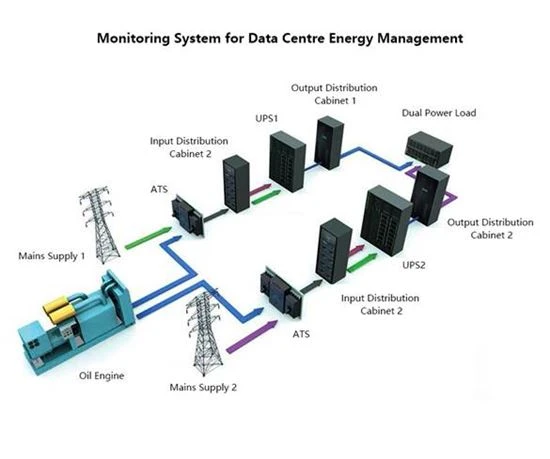

It is necessary to real-time monitor and centralize power consumption in the data center and data can be displayed on HMI, and uploaded to the power and environment monitoring system by RS485 on the touch screen and realize real-time monitoring of the whole power distribution system. At the same time, it can realize energy efficiency analysis to reduce energy consumption.

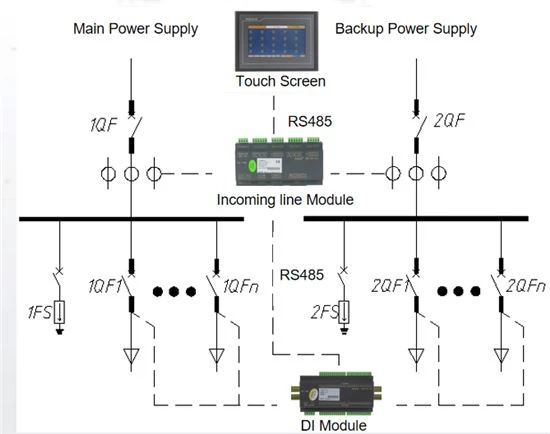

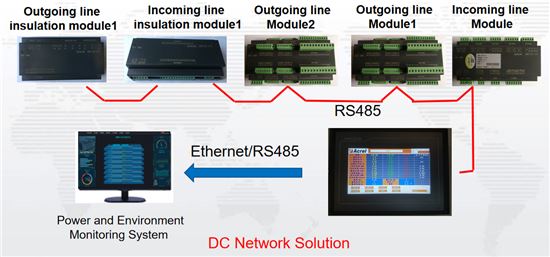

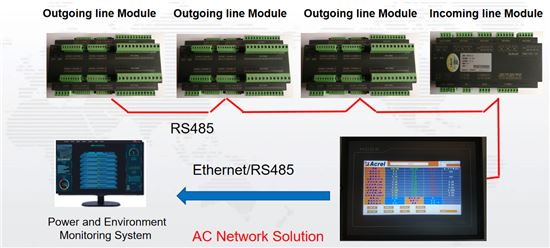

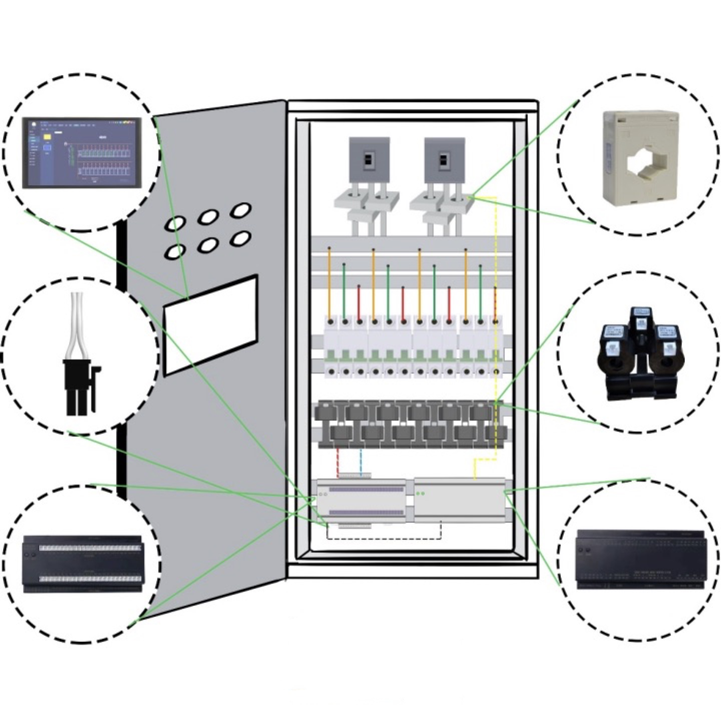

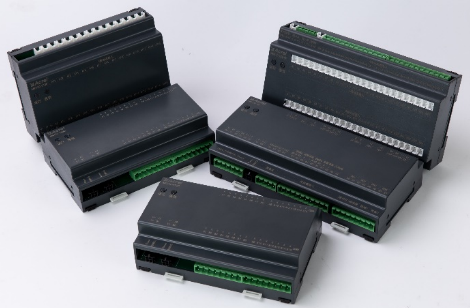

AMC precision power distribution monitoring solution is designed and developed as a complete solution for the monitoring requirements of precision power distribution cabinets (head cabinets), including AC (AC 220V), DC (DC -48V/240V/336V) systems:
 |  |  |
It comprises a ≥7/10-inch touch-type LCD display, a comprehensive information processing host module, a switch state acquisition module, a current transformer, a Hall sensor acquisition unit module, etc.
How to do the installation?
|
|
How to do the wiring?
Main Functions
Name | Pic | Model | Main Function |
HMI |
| ATP007kt ATP010kt | 1. 7 or 10-inch touchscreen 2. Real-time monitoring and display of voltage, current, power, energy, power quality, switch status, waveform curve, and so on. 3. Monitoring device alarm, communication, and other parameters can be configured on the screen. 4. 2 RS485 and 1 Ethernet interface, and data can be uploaded by RS485 or RJ45. |
AC incoming line monitoring module |
| AMC16Z-ZA | 1. Installation: DIN rail 35mm 2. Measurement: A+B independent 3 phase circuits, 6DI2DO,2 leakage current,1 temp. and humidity. 3. With DC 24V output power supply for outgoing line module and touch screen. 4. Communication: RS485 Modbus RTU |
AC outgoing line monitoring module |
| AMC16Z-FAK24 AMC16Z-FAK48 | 1. Installation: DIN rail 35mm 2. Can measure up to 16 circuits 3 phase or 48 circuit single phase 3. DC24V power supply 4. Communication: RS485 Modbus RTU |
AC outgoing line current transformer |
| AKH-0.66W | Current ratio：100A/50mA Common Specification: 100A/50mA |
DC incoming line monitoring module |
| AMC16Z-ZD | 1. Installation: DIN Rail 35mm 2. Measurement: A+B independent circuits,6DI2DO,1 temp. And humidity. 3. With DC 24V output power supply for outgoing line module and touch screen. 4. Communication: RS485 Modbus RTU |
DC outgoing line monitoring module |
| AMC16Z-FDK24 AMC16Z-FDK48 | 1. Installation: DIN Rail 35mm 2. Can measure up to 48 circuits DC outgoing line 3. DC24V power supply 4. Communication: RS485 Modbus RTU |
DC incoming line insulation monitoring module |
| AMC16Z-ZJY | 1. Installation: DIN Rail 35mm 2. Measure A+B independent DC circuit ground insulation resistance of the main bus 3. DC24V power supply 4. Communication: RS485 Modbus RTU |
DC outgoing line insulation monitoring module |
| AMC16Z-FJY | 1. Installation: DIN Rail 35mm 2. Measure 24 circuits ground insulation resistance of DC outgoing line |

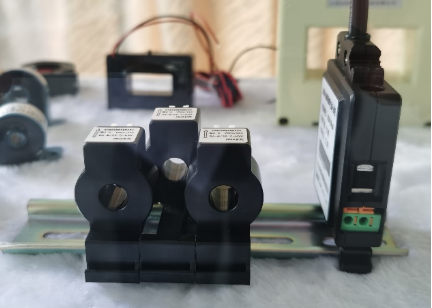

DC outgoing line hall effect current sensor |
| AHKC-BS | Current ratio：100A/5V Common Specification: 100A/5V |

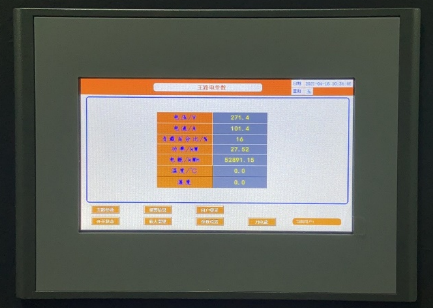

Touch Screen System Display

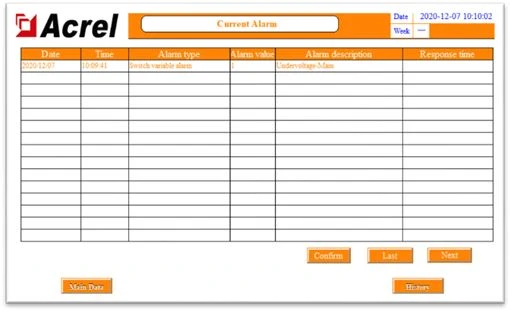

Current Alarm

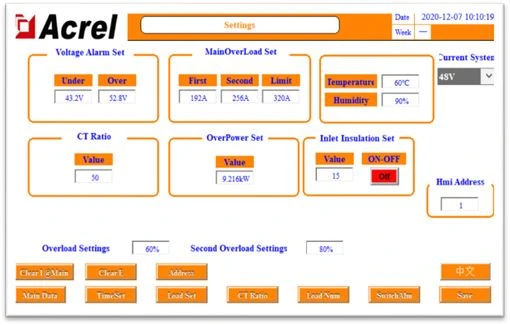

Settings

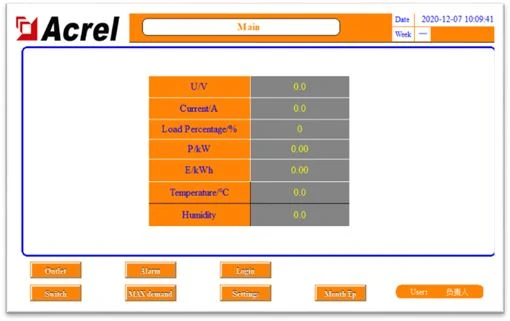

Main

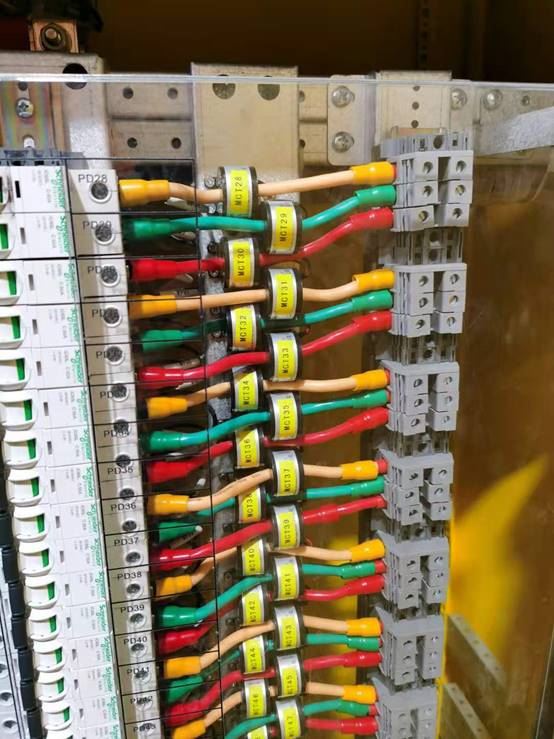

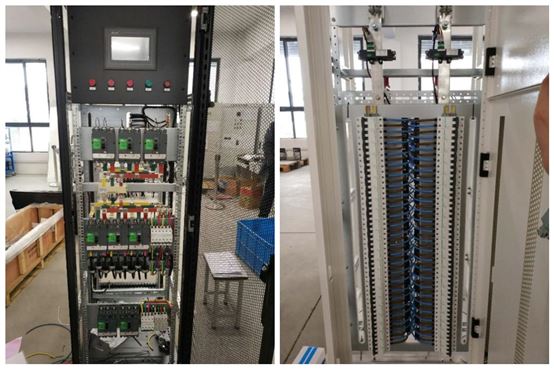

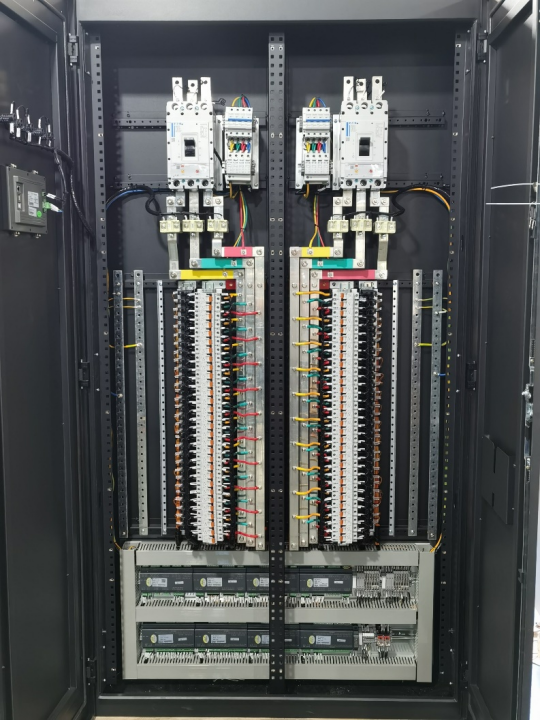

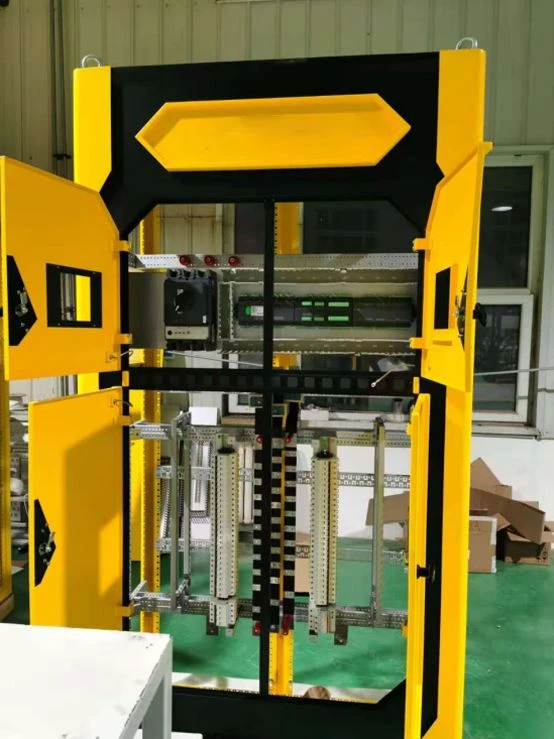

Photos On-Site
