Description

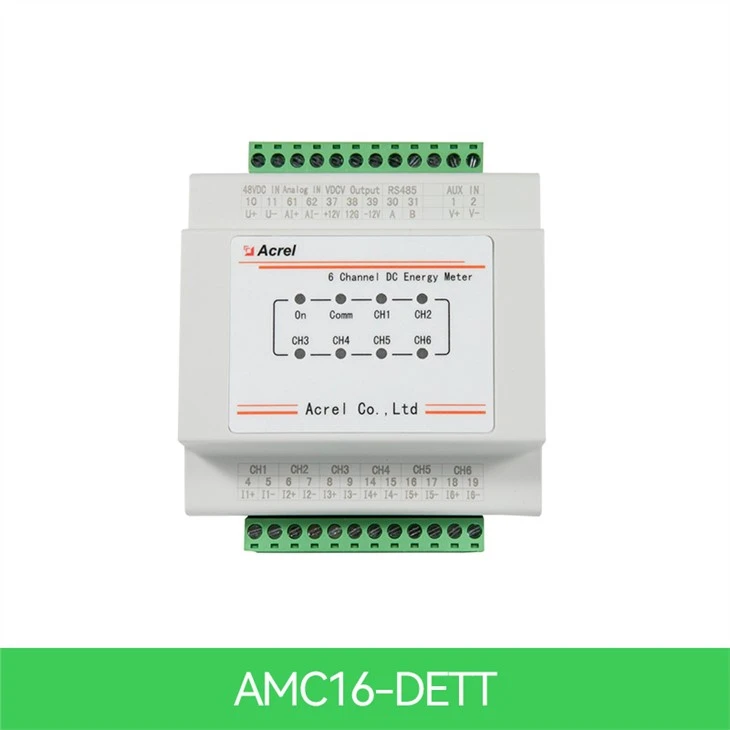

AMC16-DETT DC Energy Meter

Multi-Channel DC Energy Meter is designed for base stations with shared requirements, where the switching power supply does not have subscriber metering. The meter can measure electrical energy and provide an operating current to the matching Hall sensor. Also, zero drift calibration can be achieved through the host software. In addition, it has the functions of program metering, remote indication, remote adjustment, real-time metering, power quality abnormality alarm, data storage and processing, and data interaction; the meter can measure the power consumption of three operators and provide detailed data for the base station.

LCD display

Efficient and precise processing and testing equipment.

high-performance metering chip

with industrial micro-level processing as the core.

Strong experience in supporting customers

Worldwide customers' support experience

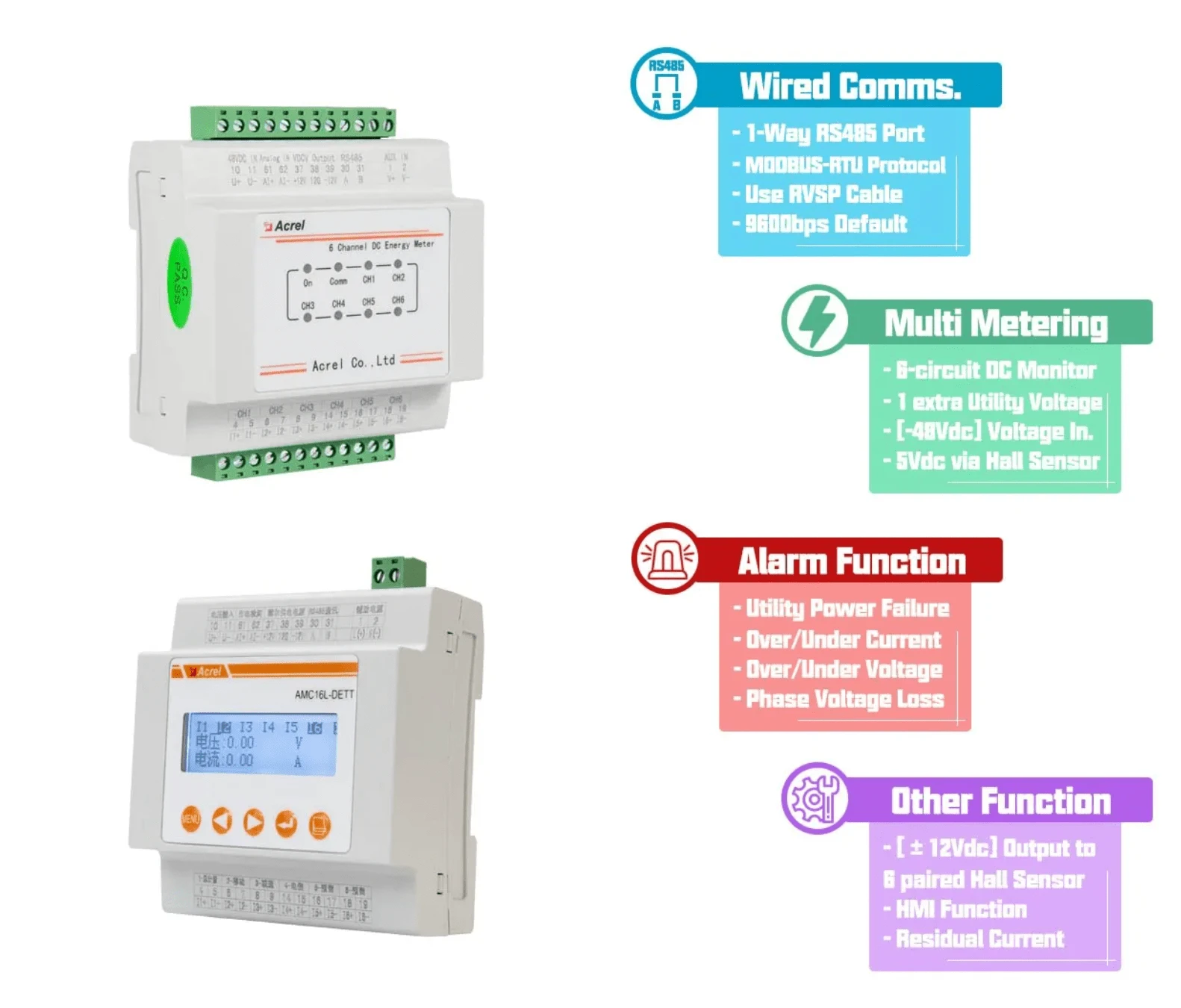

amc16 dc meter function-min

Our Solutions

Parameter

Model number	AMC16-DETT
Model number	multichannel DC energy meter
Input	DC rated voltage	1 channel:-48VDC
	DC current	6 channels hall sensors: total 200A/5V, 1,2,3,4 channel reserve 50A/5V, 5th channel reserve 100A/5V.
	Commercial power monitoring	1 channel :0-5 VDC
	Overload capacity	Voltage:1.2 times continued, 2 times continued 1 s. Current: 1.2 times continued, 10 times continued 1 s.
Accuracy (superposition hall sensors)	1%In≤I≤10%In, error ±2.5%; I＞10%In; error ±2%
Measurement resolution	Voltage: 0.01 V, Current: 0.01 A, Power: 0.01 kW, Energy: 0.01 kWh
Functions	Basic function	1. Monitor device system time; 2. Total voltage, total current, power, energy, each channel voltage, current, power, energy; 3. LED display; 4. RS485 communication;
	Metering function	1. Start current: under rated voltage, when the load current value of the meter doesn't exceed 1% of the max. current, the meter starts. 2. Shunt running current: When there is no current in the current circuit of the meter, and 85%~125% of the rated voltage is applied on the voltage circuit, the calculator shall not have more than one digital change.
	Alarm function	DC under-voltage, DC over-voltage, one power down, module voltage loss, metering branch error, internal program error, clock error, memory failure, AC input power failure.

Appearance

Multi-circuit Metering

● Up to 6-circuit DC circuit monitoring

● Rated Voltage [DC]: -48Vdc

● Rated Current [DC]: 5Vdc [via hall sensor]

● 1 extra Utility Voltage Monitoring [via -/5Vdc transducer]

AMC multi channel dc meter

AMC16 Hall sensor meter

● Applicatrion: ±12Vdc Power Output for 6 paired Hall Sensors

● Output Specs: +12V/100mA, -12V/50mA

Paired Hall Sensors

paired hall sensor
