Information

Characteristic

1)Communication: RS485/Modbus-Rtu

2)Multi-circuit: 48 single-phase or 16three-phase

3)Rated U and I: U:AC 220V/380V I:5A

Function

· A+B dual AC outlet line 2 three-phase voltage and 30 single-phase (10 three-phase) current power, electric energy and other full power parameters

·1 RS485 communications

Installation

DIN 35mm

Dimension(L*W*H):

180*90*45

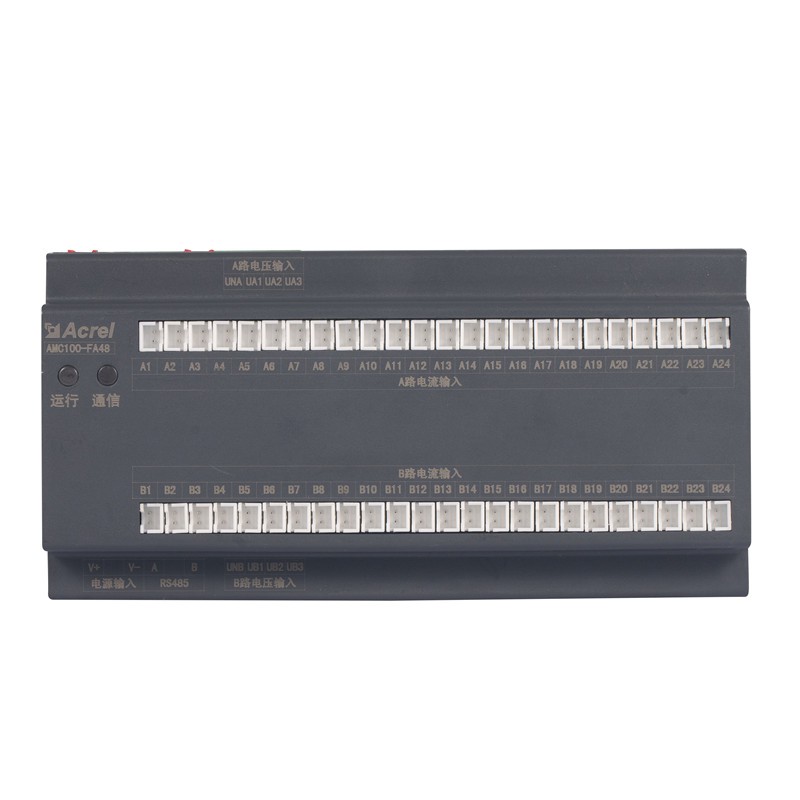

Apparance

Wiring

Parameter

Distribution System			AC
Bus voltage	Rated voltage		220V
	Measuring range		±20%
	Overload		Instantaneous voltage 2 times/sec
Current incoming circuit	Rated		50mA
	Range		0.125～60mA
	Overload		Continuous 1.2 times, instantaneous 10 times/sec
Environment	elevation		≤2500m
	Temperature		Work: -15℃～55℃ Storage: -25℃～70℃
	Humidity		Relative humidity≤93%
Frequency			AC45～65Hz
Measure		Outlet	Voltage/current/active power/active energy level 0.5, reactive power/reactive energy level 1
Insulation resistance			The insulation resistance between all terminals and the conductive parts of the shell is not less than 100MΩ
Pollution level			2
Communication			RS485/Modbus-RTU
Protection level			IP20

Quotation

Shape	Type	Function	FOB Shang Hai (USD)
	AMC100-ZA	Monitoring the full power parameters of the A+B dual three-phase AC incoming circuit, 8 switching status inputs, 4 switching status outputs, 2 leakage monitoring, 1 temperature and humidity detection, 3 RS485 communications	148
	AMC-FA30	Monitor the full power parameters of a total of 30 branches of A+B dual AC outlets, and 1 RS485 communication	133
	AMC-FA48	Monitor the full power parameters of a total of 48 branches of A+B dual AC outlets, and 1 RS485 communication	177
	AMC-FAK30	Monitor the full power parameters and switch status of a total of 30 branches of A+B dual AC outlets, and 1 RS485 communication	177
	AMC-FAK48	Monitor the full power parameters and switch status of a total of 48 branches of A+B dual AC outlets, and 1 RS485 communication	237
	AMC100-ZD	Monitors the voltage, current, power, and electric energy of 2 independent incoming lines A+B,8 switching input, 4 switching output , 1 temperature and humidity detection, and 3 RS485 communications	148
	AMC100-FD30	Monitor the full power parameters of A+B dual DC outgoing lines in A total of 30 branches, and 1 RS485 communication	133
	AMC-FD48	Monitor the full power parameters of A+B dual DC outgoing lines in A total of 48 branches, and 1 RS485 communication	177
	AMC100-FDK30	Monitor the full power parameters and switching status(active) of A+B dual DC outlet 30 branches,and 1 RS485 communication	177
	AMC100-FDK48	Monitor the full power parameters and switching status(active) of A+B dual DC outlet 48 branches, and 1 RS485 communication	237
