Three Phase Ammeter





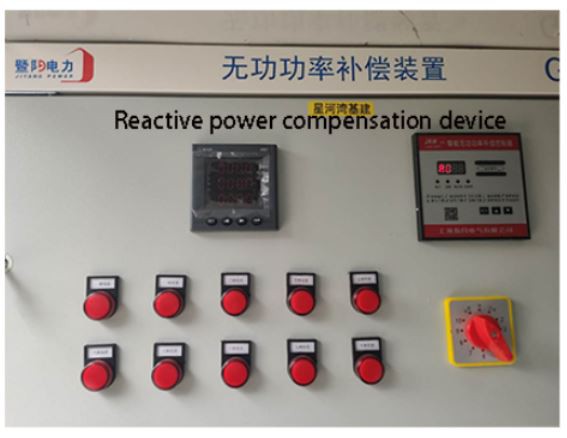

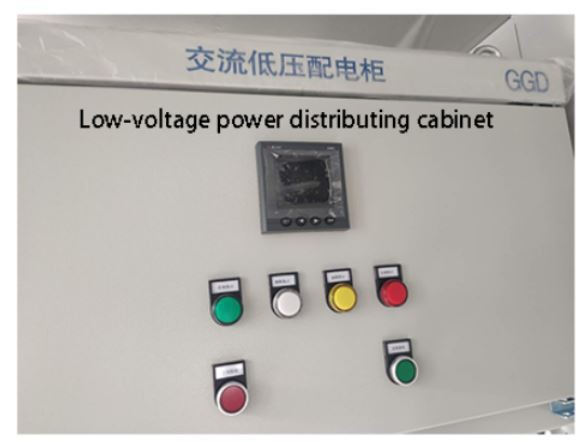

Our Three Phase Ammeters use AC sampling technology to measure voltages and currents directly or indirectly in single-phase or three-phase grids and are designed for accurate measurements in three-phase systems. They are also used to sense the value of individual factors in a circuit, and you can also connect them to industrial control equipment to form a complete measurement and control system. They are mainly used in electrical panels, but are also widely used in other applications such as the mining industry, public buildings, etc.

As a hand-held and portable device, our Three Phase Ammeters are very easy to handle and carry due to their small size and light weight, and they are very quick to set up and take down. They are useful for both AC and DC measurements, ensuring accurate monitoring and good working accuracy when measuring current in circuits. In addition, they have a highly flame-retardant ABS housing, which reduces the risk of heat generation and thus increases safety.





Technical Parameter		Value
Input	Rated Value	Voltage: AC 100V, 220V or 380V; Current: AC 1A or 5A
	Overload	Voltage: 1.2 times rated value(continuous); 2 times rated value /1 second Current:1.2 times rated value(continuous); 10 times rated value /1 second
	frequency	45Hz～65Hz
	Power Consumption	<0.5VA
Accuracy Class		0.5 class
Function	Display	LED or LCD
	Communication	RS485(Modbus-RTU)
	Alarm	1 channel passive relay,contact capacity 3A/30VDC,3A/250VAC, Used for high,low,unbalance alarm etc.
	Analog Output	DC 4-20mA (load<500Ω)
Switching	Input	4 channel or 2 channel dry contact Input, built-in power supply
	Output	2 channel switching output, NO relay contact, capacity: 3A/30VDC,3A/250VAC
Auxiliary Supply	Voltage Range	AC/DC 85~265V
	Power Consumption	<5VA
	Insulation Resistance	≥100MΩ
Environment	Temperature	Operation: -10℃～+55℃Storage: -25°C ~+70°C
	Humidity	≤95%RH, no condensation, without corrosive gas
	Altitude	≤2500m





	Accuracy Active energy: Class 0.5 Auxiliary power supply AC 220V   Consumption Current: Power consumption< 0.5VA; Auxiliary power supply: power consumption≤5VA
Installation Panel mounted Dimension(L*W*H) Panel size (L×W): 75*75mm Cutout(L×W): 67*67mm Housing (L×W×H): 66*66*94.3mm Switch relay DC 30V/3A AC 220V/3A Starting current 0.3%









1) Make holes on distribution cabinets;

2) Take out the meter and the buckle;

3) The meter is loaded into the mounting hole from the front, as shown in Figure 2;

4) Insert the buckle and fix the meter, as shown in Figure 3.
