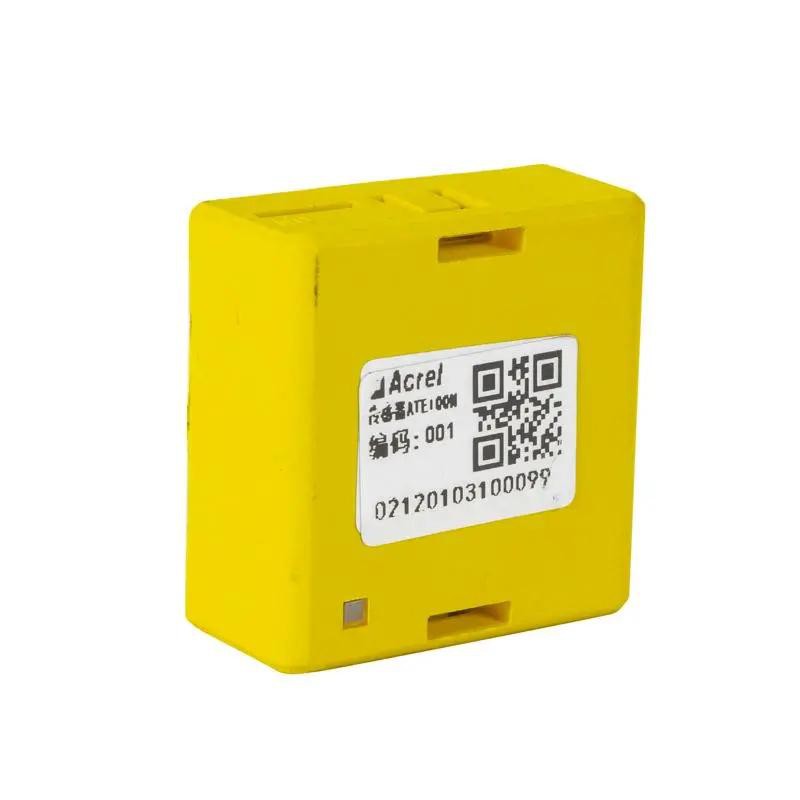

Magnetic Type Temperature Sensor





Working Power	Battery -powered, more than 5 years
Temperature range	-50℃~+125℃
Accuracy	±1℃
Sampling frequency	25s
Frequency	470MHz
Distance	150M
Transmission frequency	5 min

	ATC600-C Data adapter ●Wireless temperature measurement; ●Measuring 240 points; ●1 RS485 serial communication, Modbus-RTU; ●2 alarm relays; ●Power supply adapt with AC/DC 220V, AC/DC110V
ARTM-Pn ●Wireless temperature measurement, 240 points; ●Power supply adapt with AC220V, DC220V, DC110V, AC110V; ●Temperature Curve; ●High temperature alarm, buzzer; ●1 RS485 serial communication, Modbus-RTU;









32.4*32.4*16mm (L*W*H)

ATE series wireless temperature measuring sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears.

1----------------The Core of wireless temperature sensor ATE100M

2----------------Therm-sensitive part

3----------------Battery Switch









1)

2)

3)

The ARTM series electrical contact online temperature measurement device is composed of a wireless temperature measurement sensor and a receiving/display terminal. All temperature data can be uploaded to the wireless temperature measurement system to realize the comprehensive monitoring of the electrical contacts in the transformation and distribution process.









The low-voltage main incoming cabinet is equipped with 6 points; the capacitor cabinet is equipped with 3 points; the outgoing cabinet is equipped with 3 points for each circuit.
