Introduction

AC Leakage Current Transducer use high quality transmissive core as raw material, which has the advantages of small size, high precision, good stability and strong anti-interference ability. In addition, our products can display 24-hour field current changes in real time, and implement research on motor systems, central air conditioning series and other occasions that require current changes. Finally, it is widely used in electric power, communication, meteorology, railroad, oil field, construction, metering, scientific research and teaching units and other places.

Feature

AC Leakage Current Transducer is made of nanocrystalline and PoMo alloys, which have better temperature characteristics and phase angle performance. Secondly, we have also upgraded the electrical isolation technology with isolation withstand voltage up to 2500dc or more. And our housing has also been optimized to consider a variety of complex field environments, and can adapt to the requirements of industrial instrumentation use. Finally, we also use foreign standard terminals, which can effectively conduct electricity and have the advantages of more corrosion resistance and safety compared with other products.

Function

		BA05-AI/I(V)	BA10-AI/I(V)	BA20-AI/I(V)	BA50-AI/I(V)	BA50L-AI/I(V)
Auxiliary power	DC 12V DC 24V	DC 12V DC 24V	DC 12V DC 24V	DC 12V DC 24V	DC 12V DC 24V	DC 12V DC 24V
Consumption		≤1W	≤1W	≤1W	≤1W	≤1W

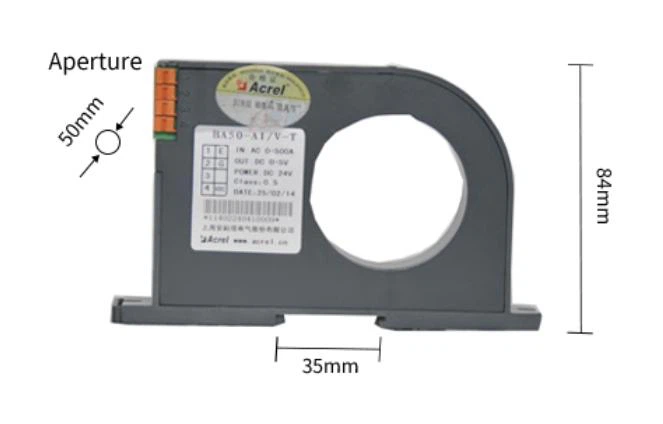

Through-hole size		φ5mm	φ10mm	φ20mm	φ50mm	φ50mm
Input	Current	AC 0~(0.5~10)A	AC 0~(8~50)A	AC 0~(40~200)A	AC 0~(60~600)A	AC 0~(0.1~1)A (limitation of leakage currents)
Output	Nominal value	DC4-20mA,or 0-20mA,0-5V,0-10V etc
	Load resistance	Current output≤500Ω，Voltage output≥1kΩ
Accuracy Class		0.5%
Response time		≤350ms
Temperature		Operation:-10 to +55℃ Storage:-25 to +70℃
Temperature coefficient		≤200ppm/℃
Installation		(Rail)DIN35, fix on cubicle with screws
Standards		GB/T 13850
