Insulation Fault Locator





Insulation Fault Locator is an advanced product developed by our company for IT power distribution systems in industrial occasions such as mines, glass factories, electric furnaces, test equipment, ships, metallurgical plants, chemical plants, explosion-hazardous places, computer centers, and emergency power supplies. The system is rich in functions, including insulation resistance monitoring, insulation fault warning, insulation fault alarm, event recording, parameter setting, communication networking, etc. When a ground fault occurs in the system, it can also alarm in time and accurately locate the specific circuit where the fault occurred, so as to remind relevant personnel to troubleshoot the fault in time.

The AIL150 Series Insulation Fault Locator is used with the AIM-M200 Insulation Monitor and the ASG150 Test Signal Generator. Used to detect the signal injected into the system by the ASG150 test signal generator, and accurately locate the circuit where the insulation fault is located.



1

High Precision

Relative uncertainty = 30%

2

Multi-Circuit

Fault Locating for 4, 6, and 8 Circuits

3

Fast Response Time

Response Time ≤ 5S

4

Communication

Use CAN communication





Rated voltage		ALI150-4/8
Auxiliary Power	Voltage	DC24V(±25%)
	Power Consumption	≤2VA
Monitored System	Rated Voltage	0~242V AC
	Frequency	45~60Hz
Location Signals	Location Voltage	DC24V(±25%)
	Location Current	≤2VA
Fault Location	Maximum Channels	4/8
	Response Time	<5s
Communications	Bus	CAN
	Protocol	Custom Protocol









Features

• 1. The Insulation Fault Locator uses a high-precision signal detection circuit, so the detection is more accurate.

• 2. Multiple indicator lights can provide accurate prompts.

• 3. It can be used to locate 4/8 branches.

• 4. Equipped with bus technology, it can exchange data with other devices.





Using:

 The CAN bus technology is used to exchange data with other equipment.

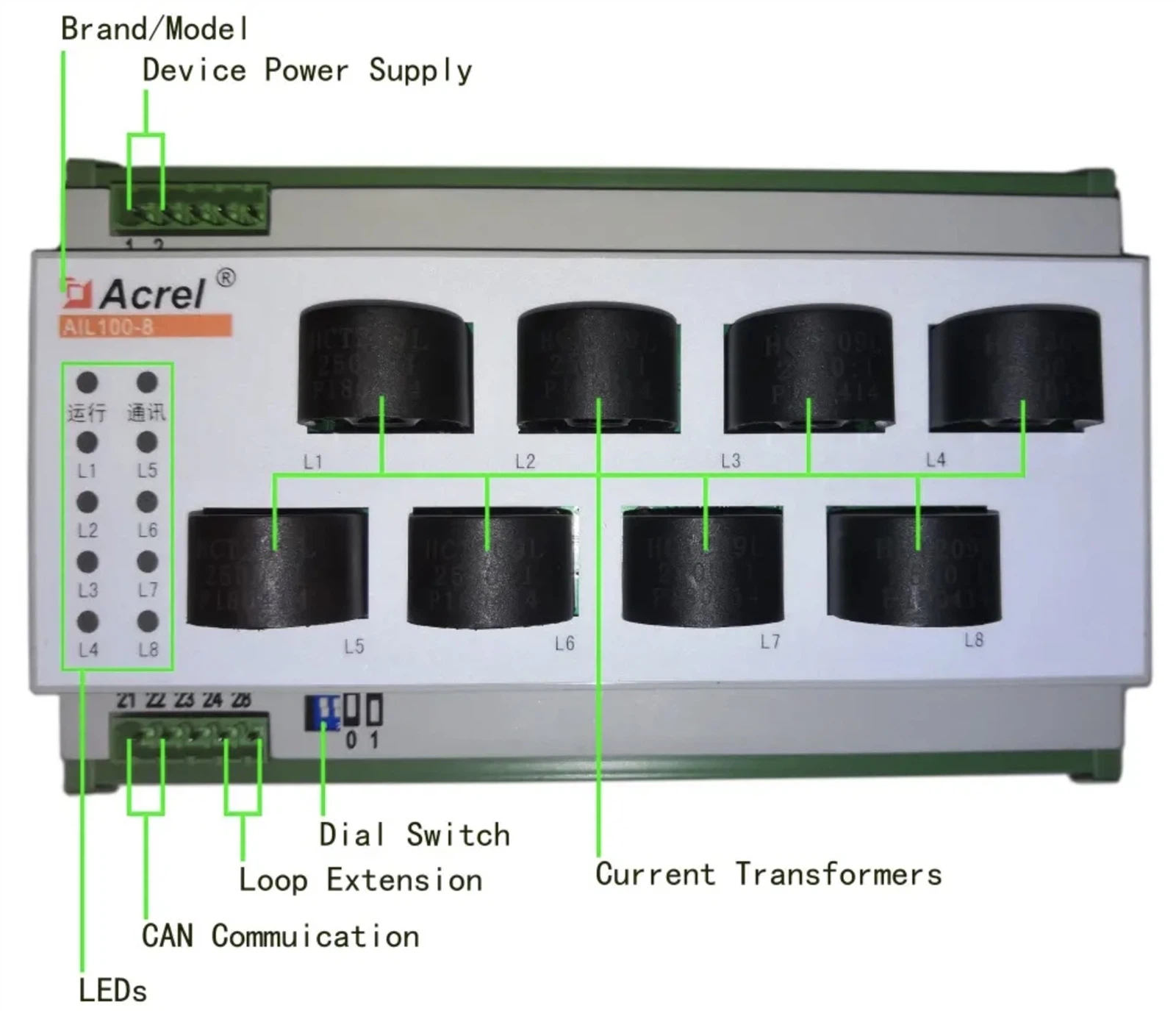

 Cooperate with ASG100 test signal generator to realize fault locating function, in which the AIL100-4 can locate

the insulation faults of 4 circuits and AIL100-8 can locate the insulation faults of 8 circuits. The positioned circuit

is indicated by the LED indicator.
