Description
With the wide application of electronic medical equipment in the hospital field, leakage current poses an increasing threat to patients, especially in those places where life is at stake. During surgery or under anesthesia, various electrodes and sensors are directly inserted into the human body, and a small leakage current may cause accidents. Medical Isolated Power Monitor is a product used in medical IT systems to monitor the insulation status of IT systems from ground to ground. When there is an insulation fault in the system, an alarm signal can be issued in time to remind the staff to deal with it according to the actual situation.

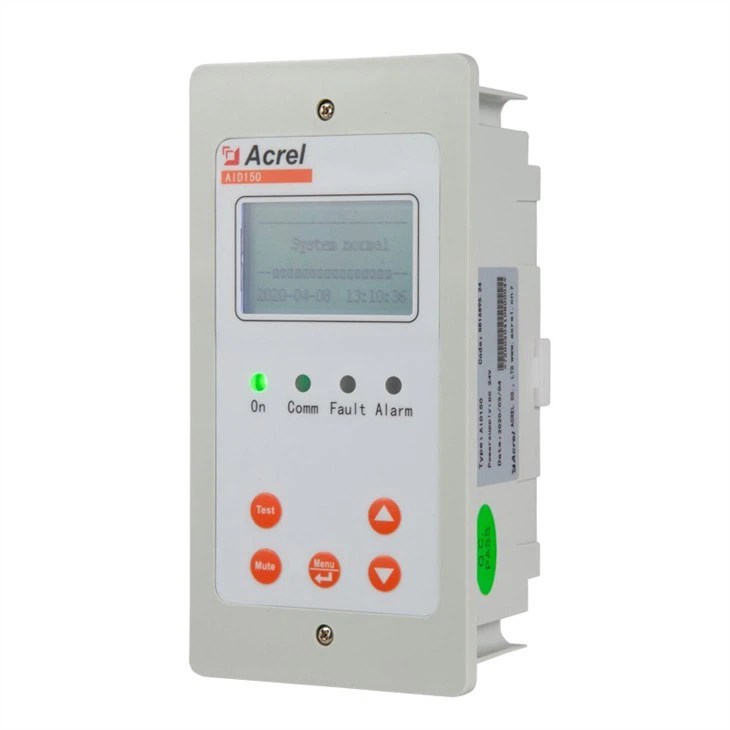

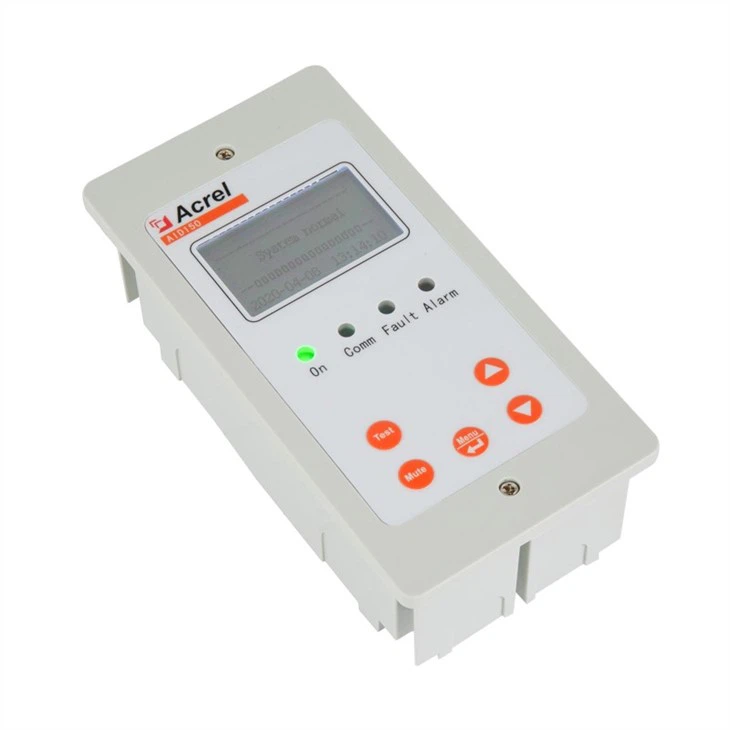

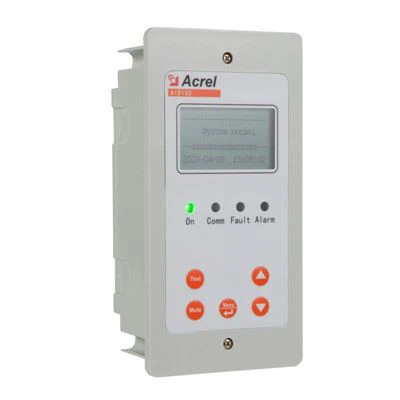

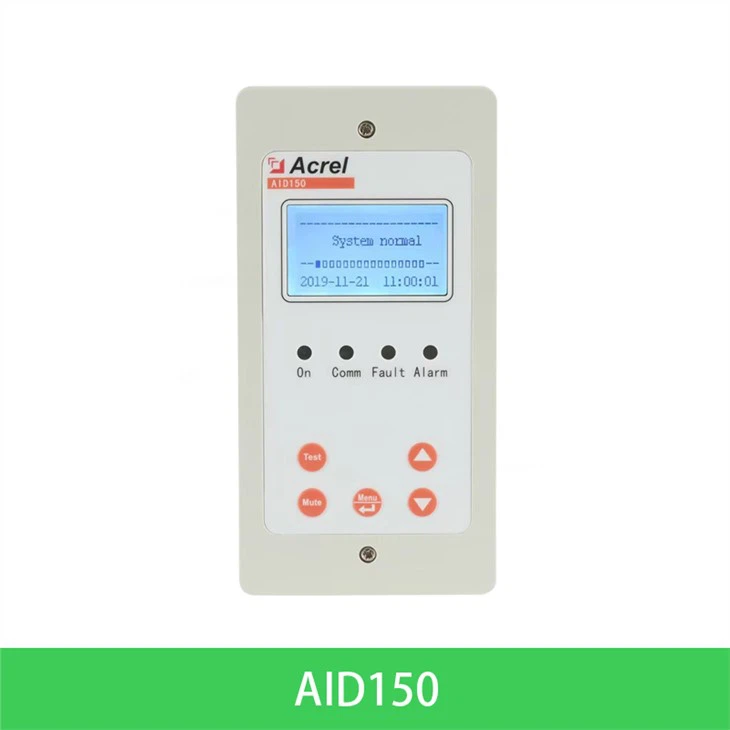

AID150 centralized alarm and display device adopts the LCD liquid crystal display and achieves data exchange with AIM-M300 series medical intelligent insulation monitoring device through RS485 communication interface, which can real-time monitor multi-channel data of AIM-M300 series medical intelligent insulation monitoring device.
1
Multi-Circuits Monitoring
Max 16 IT Systems
2
Remote Setting Values
Resistance /load current/ transformer alarm
3
Centralized Alarm
Audible and visual alarm signals
4
Events Logging
Asave a maximum of 20 latest records.
Parameter
| Product | Medical Isolated Power Monitor |
|
Auxiliary POWER |
DC 24V |
|
Consumption |
≤ 0.6W |
|
Insulation alarm range |
50...999kΩ |
|
Current alarm range |
14A,18A,22A,28A,35A,45A |
|
Temperature alarm range |
0...+200℃ |
|
Alarm mode |
Audible and visual alarm |
|
Alarm type |
Insulation fault, overload, overtemperature, device failure |
|
Communication |
RS485, MODBUS-RTU |
|
Display mode |
LCD display, 128*64 dot array |
 |
● Real-time data monitoring and alarm by field bus ● Remote parameter setting ● Acoustic alarm with function |

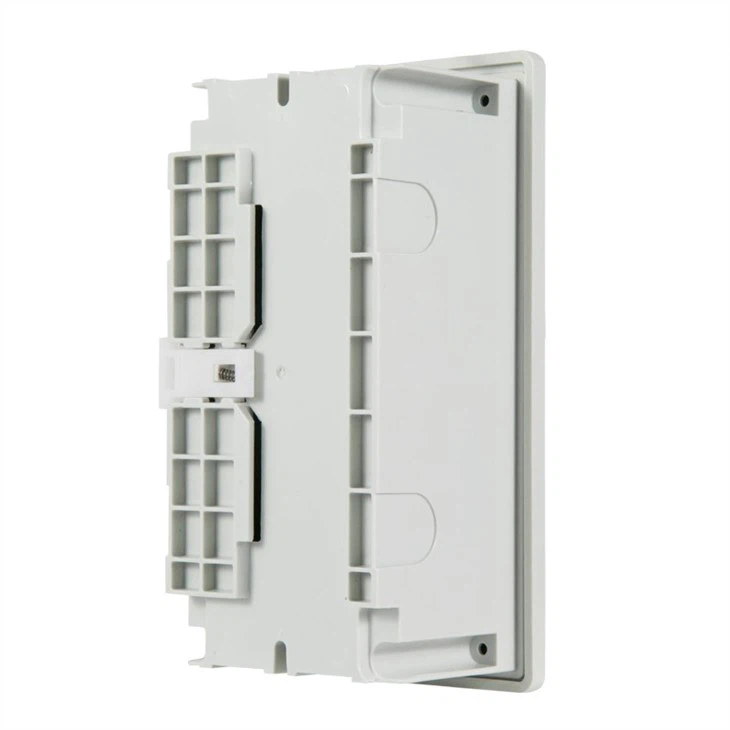

| Dimension(L*W*H) 63*87*172mm Installation Embedded wall Communication RS485 |
 |
Function
Features

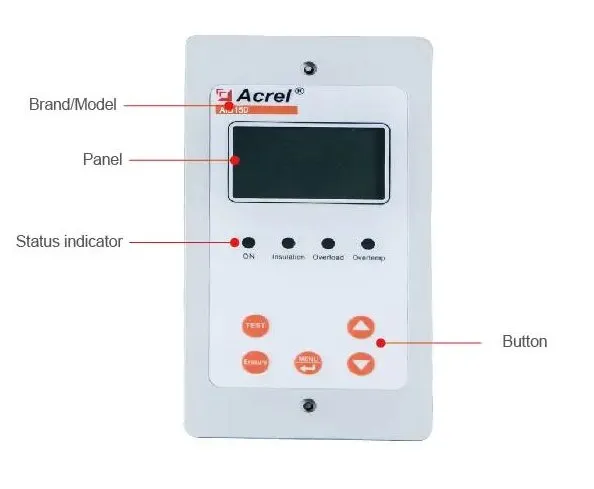

1. Medical Isolated Power Monitor has a rich display and alarm indication functions, a friendly interface, and convenient operation.
2. It can measure and display the transformer load current in real time.
3. Sound and light alarms can make people find out faster and prevent accidents in time.
4. The LCD can clearly display various data.

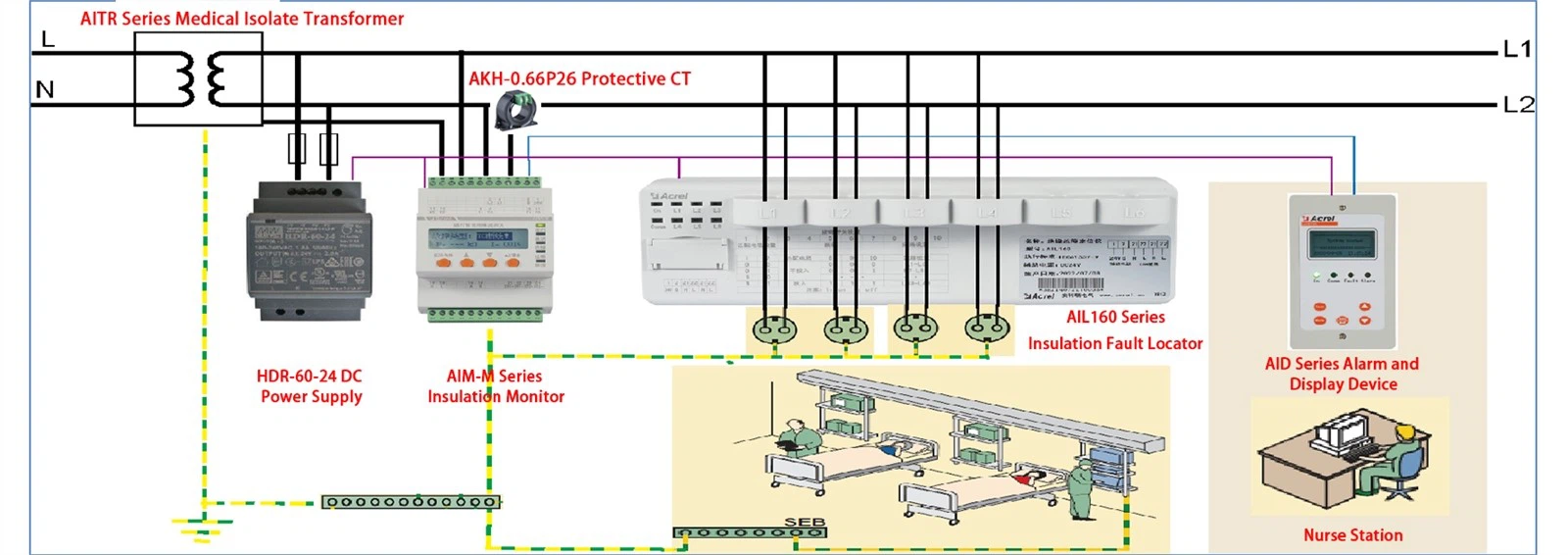

Acrel IT System 6 Pieces Solution for ICU & Operating Room
Using:
1) AITR series medical isolation transformer
2) AIM-M300(or AIM-M300/SG) medical intelligent insulation monitoring device;
3) AKH-0.66P26 current transformer;
4) AIL150-4/AIL150-8 /AIL160-6 insulation fault locator;
5) HDR-60-24 power module;
6) AID150 centralized alarm and display device
Quotation
