Description

Our Wireless DC Power Meters are mainly used for three-phase active energy metering in low voltage grids and have the advantages of small size, high accuracy and rich functionality. Depending on the use scenario, they have various communication functions such as RS485 communication, NB, 4G, etc. A new current sampling method using an external transformer has also been added. At the same time they are compact and easy to install without taking up too much space. You can install them in distribution boxes, thus realising the requirements of sub-metering, operation and maintenance supervision or power monitoring for different areas and different loads.

Features

Our Wireless DC Power Meters are primarily used for the measurement of all electrical parameters in three-phase circuits, while current inputs can be selected for up to four circuits. They come with a fast-response, multifunctional LCD LED display for high operational accuracy and clear figures. And their strong, flame-retardant housing is robust and prevents deformation during long-term use. In addition, they are equipped with reverse connection protection to ensure safety even in bad weather.

Parameter

Voltage input	Rated voltage	AC: 3×57.7/100V, 3×220/380V, 3×380/660V, 3×100V, 3×380V, 3×660V; DC: 48V
	Reference frequency	AC: 50Hz
	Consumption	<0.5VA (Each phase)
Current input	Input current	AC: 3×20(100)A DC: 50A，100A
Current input	Consumption	<1VA (Each phase)
Auxiliary power	Power Supply	AC: 85~265V DC: 48V±20%
Auxiliary power	Power consumption	<5W
Measurement performance	Electrical parameter	Class 0.5
Measurement performance	Active energy accuracy	Class 1
	Temperature Range	-40℃~100℃
	Temperature accuracy	±2℃
DO	Contact Rating	5A，AC250V/DC30V
Pulse	Width of pulse	80±20ms
Pulse	Pulse constant	AC：400imp/kWh DC：1600imp/kWh
Communication	Wireless	2G；NB；4G
	Infrared communication	The constant baud rate is 1200
	Interface	RS485(A、B)
	Connection mode	Shielded twisted pair conductors
	Protocol	MODBUS-RTU

Accuracy

Class 0.5
Measurement
U, I, P, Q, S, PF, F
Harmonic function

THDv, 2nd-31st
DI/DO
3DO

Measuring Channel

3 DC Channel or 1 AC Channel Three Phase

Dimension(L*W*H)
72*71.5*92.6mm
Installation
DIN 35 mm
Communication
NB-IOT, Infrared, 2G, 4G
Temperature Measurement
Two way temperature

Appearance

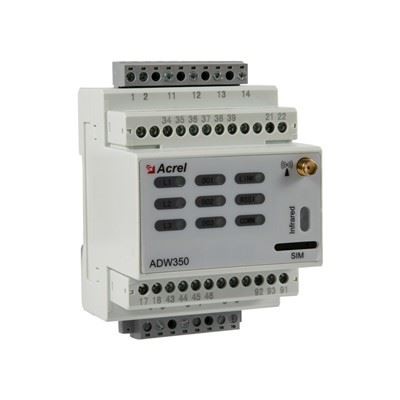

112999a_

How to choose your DC transformer

with ct ac

ADW350 Wireless DC Multi-Loop Din Rail Energy Meter is mainly used to meter DC or three AC active energy on a low voltage network. The product boasts of advantages including compact size, high precision, rich features.

with hall dc

According to different requirements, there are many communications functions like RS485 communication, NB, 4G, adding the new current sampling mode using an external transformer.
