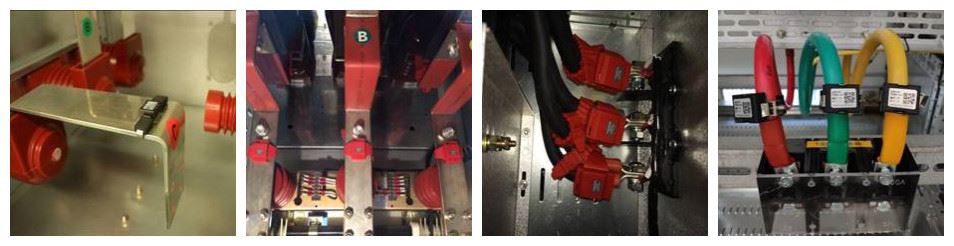

Application
Production Introduction
Temperature display

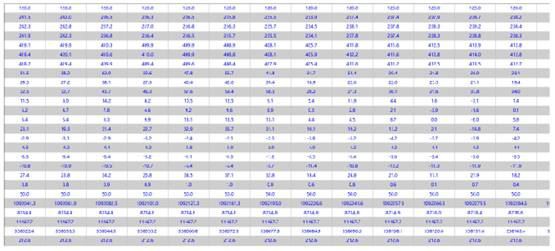

Report

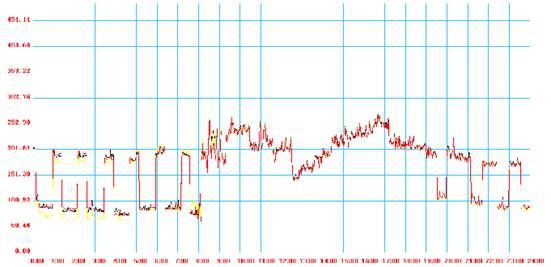

Curve

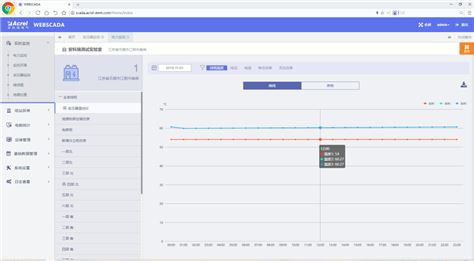

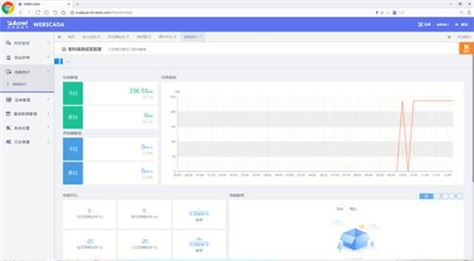

Web/APP
Web/APP
Web/APP

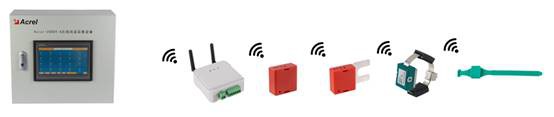

Product Selection
ATE400 CT Powered Temperature Sensor ◆ Small size; ◆ Wireless transmit; ◆ Wireless transmission distance, 150 meters; ◆ Fase sampling frequency,15s; ◆ CT-powered, more than 5A starting current; ◆ Wide temperature measuring range, -40℃~125℃. |
|
ATE200 Battery-Powered Temperature Sensor ◆ Wireless transmit; ◆ Wireless transmission distance, 150 meters; ◆ Fase sampling frequency,25s; ◆ Battery-powered, more than 5 years; ◆ Wide temperature measuring range, -40℃~125℃. |
|
ATE100 Battery-Powered Temperature Sensor ◆ Wireless transmit; ◆ Wireless transmission distance, 150 meters; ◆ Fase sampling frequency,25s; ◆ Battery-powered, more than 5 years; ◆ Wide temperature measuring range, -40℃~125℃. |
|
ATE100M Battery-Powered Temperature Sensor ◆ Wireless transmit; ◆ Wireless transmission distance, 150 meters; ◆ Fase sampling frequency,25s; ◆ Battery-powered, more than 5 years; ◆ Wide temperature measuring range, -40℃~125℃. |
|
ATC450-C Transmitter ◆ Wireless temperature measurement; ◆ Measuring 60 points; ◆ 1 RS485 serial communication, Modbus-RTU; ◆ Power supply adapts with DC24V. |
|
ATC600-C Transmitter ◆ Wireless temperature measurement; ◆ Measuring 240 points; ◆ 1 RS485 serial communication, Modbus-RTU; ◆ 2 alarm relays; ◆ Power supply adapts with AC/DC220V, AC/DC110V. |
|
ARTM-Pn Temperature Monitor ◆ Wireless temperature measurement, 60 points; ◆ U, I, P, Q, f, Ep, Eq measurement； ◆ 4 digital inputs; ◆ 2 alarm relays, high-temperature alarm; ◆ LCD display; ◆ Power supply adapt with AC220V, DC220V, DC110V, AC110V; ◆ 1 RS485 serial communication, Modbus-RTU. |
|
Acrel-2000T/A Temperature Monitor ◆ Wireless temperature measurement, 240 points; ◆ Power supply adapt with AC220V, DC220V, DC110V, AC110V; ◆ Temperature Curve; ◆ High-temperature alarm, buzzer; ◆ 1 RS485 serial communication, Modbus-RTU; ◆ 1 Ethernet communication. |
|
Typical Solution
60 Points
240 Points
240 Points Centralized Monitor
