Function

Working Power	Battery -powered, more than 5 years
Temperature range	-50℃~+125℃
Accuracy	±0.5℃
Sampling frequency	25s
Frequency	470MHz
Distance	150M
Transmission frequency	5 min

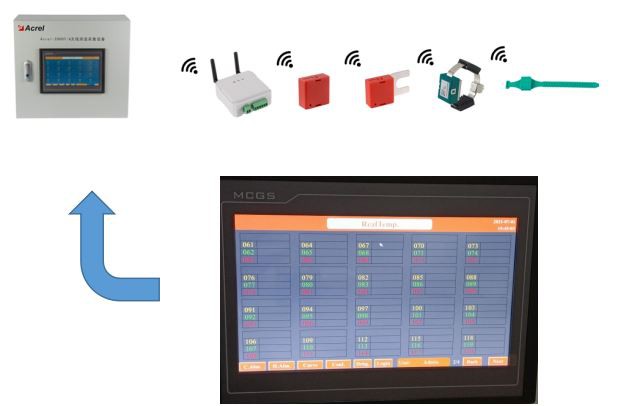

ATC600-C Data adapter

●Wireless temperature measurement;

●Measuring 240 points;

●1 RS485 serial communication, Modbus-RTU;

●2 alarm relays;

●Power supply adapt with AC/DC 220V, AC/DC110V

ARTM-Pn

● Wireless temperature measurement, maximum measuring 60 points;

● 4 digital inputs;

● 2 alarm relays;

● LCD display;

● Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V;

● 1 RS485 serial communication, Modbus-RTU.

Appearance

}8`K)P@B]1H]5SXEOAX%P$S

Dimensions

25.82*20.42*12.8mm( L*W*H)

Introduction

The traditional temperature measurement method of the power system has certain limitations in the application process. For example, when the traditional infrared temperature thermometer monitors electrical equipment, it cannot monitor the interior of the switch, nor can it realize real-time monitoring. It is because of these problems that some accidents occur. Our ATE Belt Type Temperature Sensor uses non-contact, passive, high-precision, infrared sensing technology to monitor temperature, so it can make up for the above deficiencies, and it can also bring great convenience to the inspection work of equipment maintenance personnel. Our products are suitable for 3-35kV indoor switchgear, which covers much switchgear.

Features

1. Although the Belt Type Temperature Sensor is simple, it integrates online temperature measurement, data acquisition, data analysis, and control functions.

2. The RS485 communication interface is conducive to networking applications and is used in conjunction with computer monitoring systems.

3. Reliable electronic processing technology makes it have a strong anti-interference ability, so it can work in harsh environments.

4. The installation of the Belt Type Temperature Sensor is very simple, so it can effectively save time.
