Distributed photovoltaic solutions
Nowadays, grid companies usually require photovoltaic grid-connected systems to be irreversible, that is, the electricity generated by photovoltaic grid-connected systems is consumed by local loads, and excess electricity is not allowed to supply to the grid. The system can regulate power generation in order to prevent the photovoltaic grid-connected system from generating reverse power.

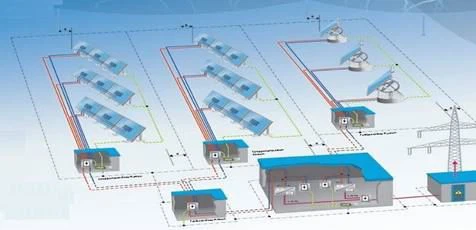

Structure
Solution for photovoltaic AC coupled energy storage
Solution for PV anti-backflow
Solution for PV DC-coupled energy storage
Product Selection
Application | Model | Certificate | Product |
Single-phase | AGF-AE-S | ANSI C12 |
|
ACR10R-D10TE | CE |  | |
Single-phase Three Wire | AGF-AE-D | ANSI C12 UL 1741 |
|
Three-phase | ACR10R-D10TE4 | CE |
|
Certificate

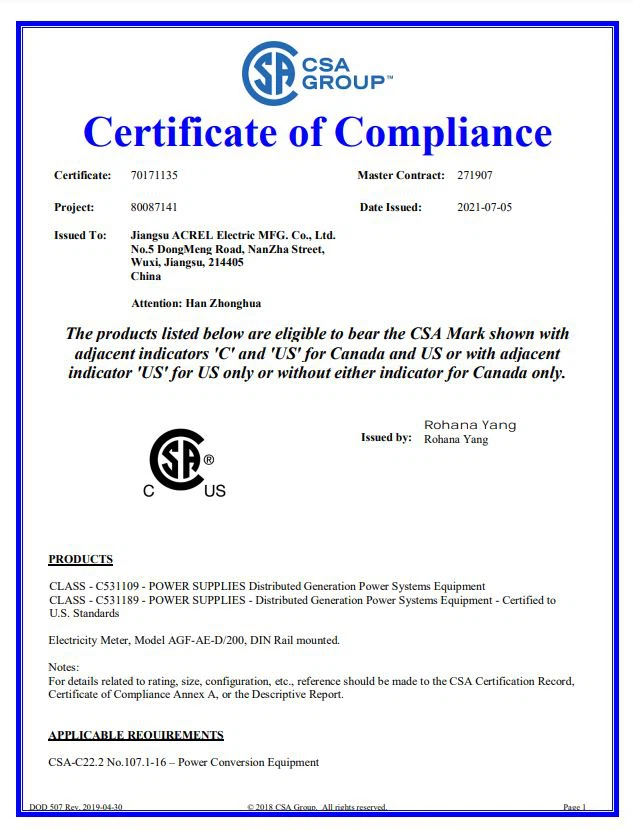

AGF-AE-D CSA
ACR10 CE
Centralized PV solutions
Functions
Accuracy: 1, voltage output: ±12V
Communication: infrared and RS485 communication, Modbus-RTU and 645 protocol
DIN rail installation
Support hall sensor or shunt input
In the solar PV power generation system, the smart PV combiner box reduces the connection between the solar PV cell array and the inverter. The box can monitor the operating status of the solar panels, lightning protector and DC circuit breaker. With the RS485 interface, the device can upload the measured and collected data and equipment status.

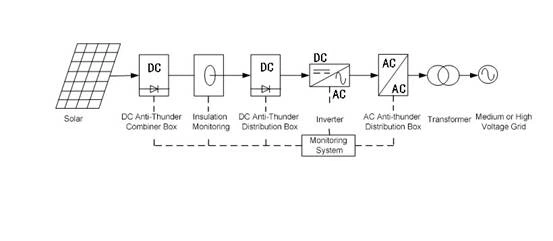

Structure
Solution for DC System
Solution for DC System
Product Selection
Name | Product |
Combiner box |
|
PV Confluence Acquisition Device |
|
Functions APQM Power Quality Monitoring Device ● Measurement of electrical parameters ●harmonics, inter-harmonics, voltage fluctuation, flicker ●Monitoring of voltage swell, voltage sag, voltage interruption ●Statistics of power quality limit times, voltage qualification rate, and form the report.
|
