Residual Current Operated Relay





In industrial applications, our Residual Current Operated Relays are often used in combination with external toroidal coils to protect circuits against equipment damage and electrical equipment fires caused by earth faults. In addition, they come with indirect contact protection to provide good protection against the risk of electric shock. They are mainly used in TT and TN system distribution circuits for 50Hz AC and in environments with rated voltages of 400V or less and have good operating efficiency.

Our Residual Current Operated Relays can be sensitive to a range of display, alarm and control functions in the event of a current fault, as a means of protecting equipment safety. At the same time they can record 24-hour changes in site current to accurately protect personnel and electrical equipment from leakage currents. In addition they can detect current imbalances and trips and issue alarms to prevent earth faults or the risk of fire due to incorrect wiring.









Technical Parameter		Indicator
		AC type	A type
Input	Rated residual action current	0.03、0.1、0.3、0.5(A)	0.03、0.05、0.1、0.3、0.5、1、3、5、10、 30(A) note 3
	Non-driving time of limitation △t	0.1、0.5(s)	0、0.06、0.1、0.2、0.3、0.5、0.8、1、4、 10(s) note 4
	Rated residual non-action current I△no	50%I△n	50%I△n
	performance characteristics	simple sinusoidal alternating current	simple sinusoidal alternating current and pulsating direct current
	frequency	50Hz±5Hz	50Hz±5Hz
Action error		-20% ~ -10%I△n	-20% ~ -10%I△n
Output	output mode	one is the normal closing and the other is for the transformation	one is the normal closing or opening, and the other is for the transformation
	contact capacity	5A 250VAC 5A 30VDC	AL1:8A 250VAC 5A 30VDC AL2:6A 250VAC 5A 30VDC
	reset mode	the on-the-spot one and the long-distance one,	the on-the-spot one, the long-distance one and the automatic one
Power Supply	voltage range	AC110V、AC220V（permissible error±10%）		AC110V、AC220V、DC85-270V （permissible error±10%）
	power dissipation	≤5W
Power Frequency Withstand Voltage		The effective value of alternating current between the power supply, input and output: 2kV/1min
Under the normal operation	temperature	operating temperature: -20℃ ~ +55℃ storage temperature: -30℃ ~ +70℃
	humidity	≤95%RH, with moisture condensation, and corrosive gas place
	height above sea level	≤2000m
	class of pollution	Grade three
	installation category	Type Ⅲ





Type	Basic function	Installing way	Photo

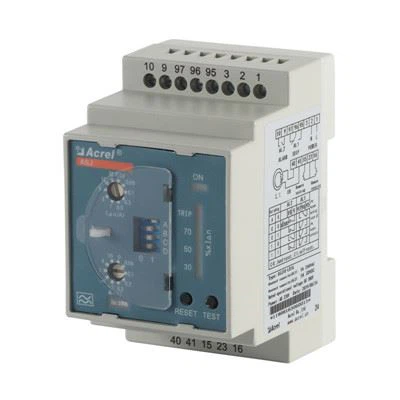

ASJ10-LD1C	1. AC-type residual current measurement; 2. Alarm prompt of current crossing line; 3. Rated residual operating current can be measured; 4. Limit non-driving time can be set; 5. Two sets of relay output; 6. With local and remote “test” and “reset” functions.	Rail guiding (TS35mm)
ASJ10-LD1A	1. A-type residual current measurement; 2. Current percentage light column display; 3. Rated residual operating current can be measured; 4. Limit non-driving time can be set; 5. Two sets of relay output (settable)note 1 ; 6. With local and remote “test” and “reset” functions.

Note 1: The function of setting for relay means that you can set the initialization and the output state of relay by yourself through the code dialing on the panel; the specific setting guide can be found from the manual.

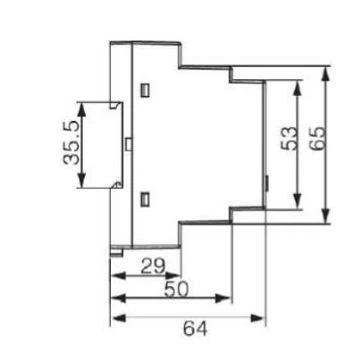

Instrument type	Panel size (mm)	Shell size (mm)	Hole size(mm)
ASJ20-LD1C ASJ20-LD1A	48×48( width by height)	43.8×43.8×100（width by height by depth）	45×45（width by height）
ASJ10-LD1C ASJ10-LD1A	85×54×64（length by width by height）
